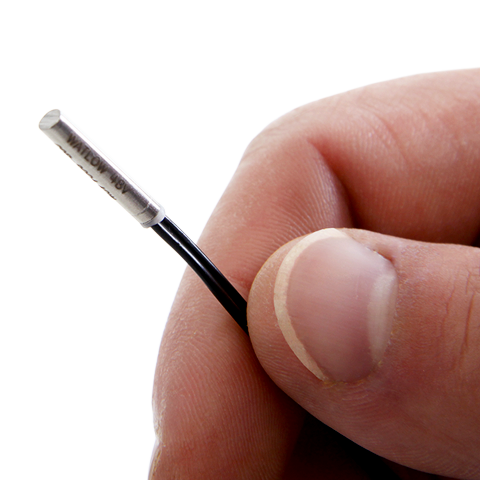

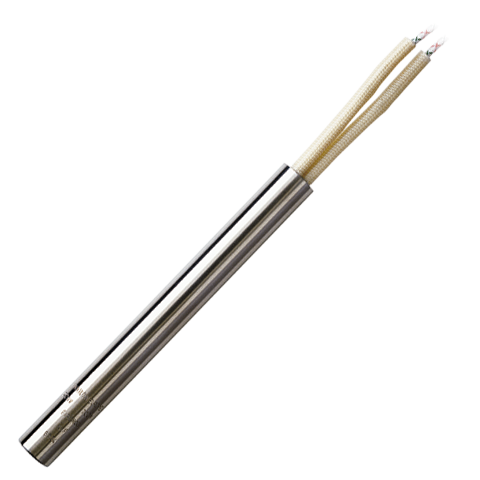

Watlow 1/2" FIREROD Cartridge Heater, 10.0" Len., 120V, 1000W, Alloy 800 Sheath, 60" PTFE Lead
Configuration Details
Diameter [in] (B) .496" +/- .002"
Overall Length [in] (A) 10.000
Length Tolerance + /- 2%
Voltage [V] 120
Power [W] 1,000
Wattage Tolerance [%] + 5%,- 10%
Terminations Straight Braid
End Seal PTFE
Lead Type PTFE
Lead Length [in] (E) 60
Protection Length [in] (F) 58
Sheath Materials Alloy 800
Mounting Options Medium Flange (FM)
Distance From Lead End [in] (G1) 0.500
Attachment Method S = Stake
LINE 4 2366-4293
CE No
Lead End No Heat[in] 'NOM' 1.250
Disk End No Heat [in] 'NOM' (C) 0.250
Watt Density [w/in2] nom 75
Configuration Details
Diameter [in] (B) .496" +/- .002"
Overall Length [in] (A) 10.000
Length Tolerance + /- 2%
Voltage [V] 120
Power [W] 1,000
Wattage Tolerance [%] + 5%,- 10%
Terminations Straight Braid
End Seal PTFE
Lead Type PTFE
Lead Length [in] (E) 60
Protection Length [in] (F) 58
Sheath Materials Alloy 800
Mounting Options Medium Flange (FM)
Distance From Lead End [in] (G1) 0.500
Attachment Method S = Stake
LINE 4 2366-4293
CE No
Lead End No Heat[in] 'NOM' 1.250
Disk End No Heat [in] 'NOM' (C) 0.250
Watt Density [w/in2] nom 75
Specifications
| Temp Heater: Brand | Watlow |
| Temp Heater: Type | Cartridge |
| Temp Heater: Diameter | 1/2" |
| Temp Heater: Length Range | 6" to 11" |
| Temp Heater: Length | 10.00" |
| Temp Heater: Voltage | 120V |
| Temp Heater: Power | Medium Power (200W - 500W) |
| Temp Heater: Lead / Termination Type | Leads |
| Temp Heater: Sheath Material | Alloy 800 |
| Temp Heater: Max Op. Temp | Extreme Temp: Over 1000°F |
