  3. Watlow RB Style RTD, Single 2-Wire, SS/PFA Over Sheath, 1/4" OD, 6" Sheath, 60" Fiberglass Lead
Public Pricelist (v2)

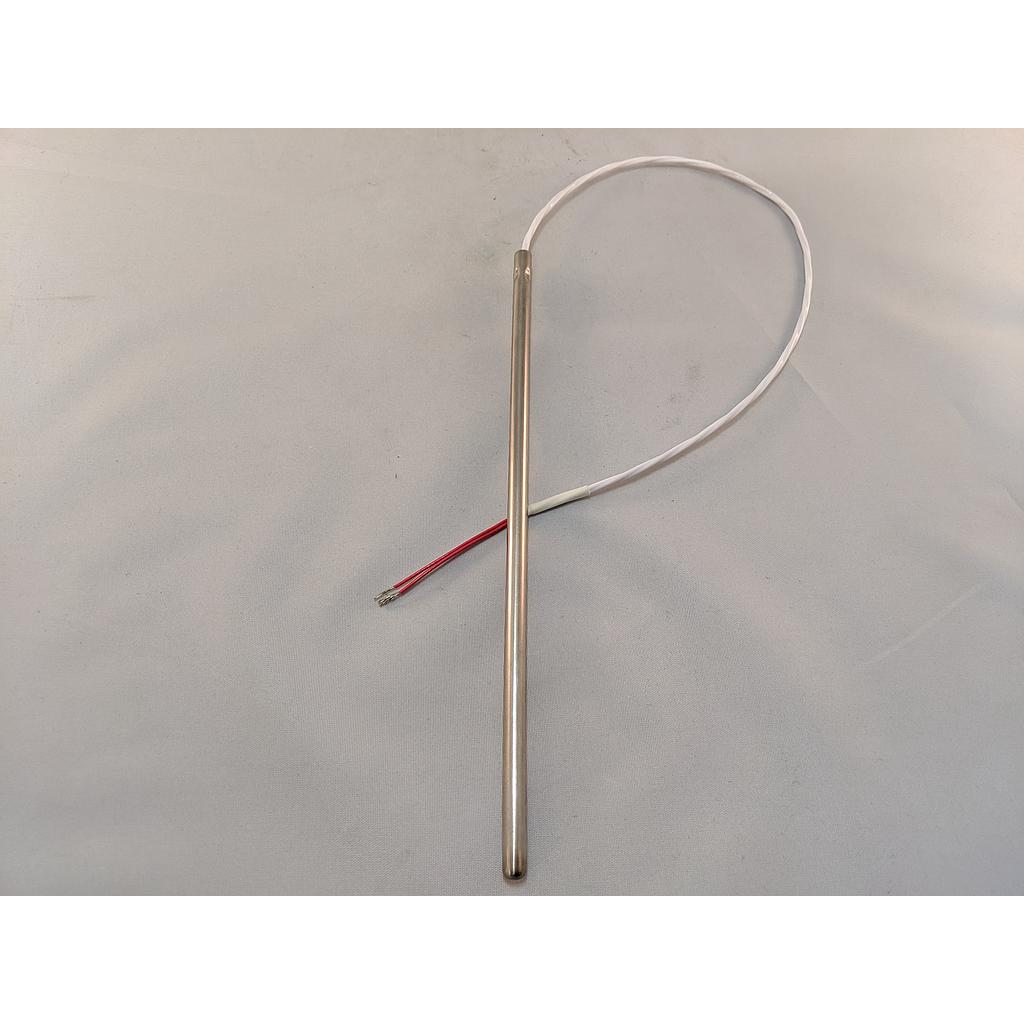

Representative photo. Please check item description for details.

Watlow RB Style RTD, Single 2-Wire, SS/PFA Over Sheath, 1/4" OD, 6" Sheath, 60" Fiberglass Lead

https://www.branom.com/web/image/product.template/541729/image_1920?unique=7ce29ed
(0 review)

RTD Sensor Style RB Style RTD
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath B - Black
Element Type A - 100 ohms Single 2-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Mounting Options None
Bend Option Straight Length
Sheath Length [L] (In) 6.000
Lead Wire Construction A - Fiberglass Stranded
Lead Wire Length in inches 60
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No


  • RTD: Brand
  • RTD: Type

This combination does not exist.

Contact Us

Share

RTD Sensor Style RB Style RTD
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath B - Black
Element Type A - 100 ohms Single 2-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Mounting Options None
Bend Option Straight Length
Sheath Length [L] (In) 6.000
Lead Wire Construction A - Fiberglass Stranded
Lead Wire Length in inches 60
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

Specifications

RTD: Brand Watlow
RTD: Type Wire-Lead Probe
