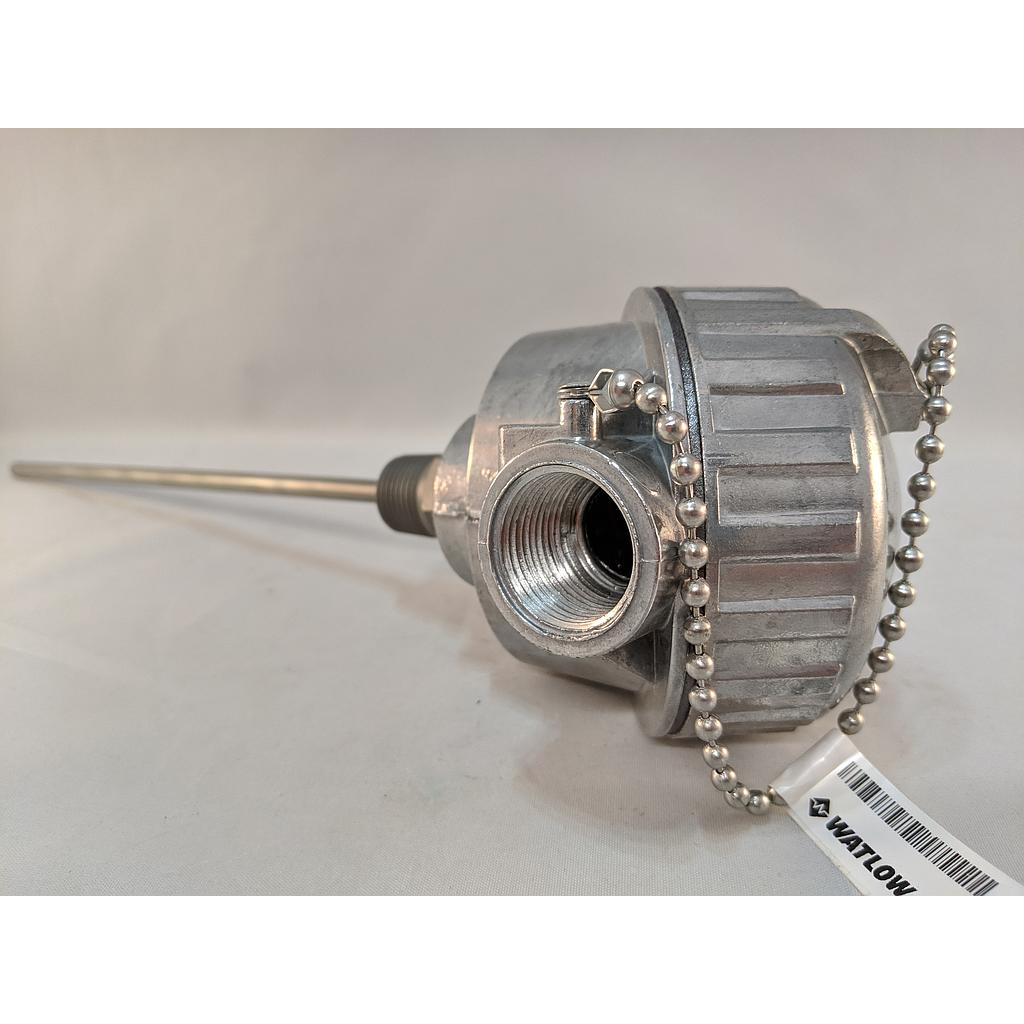

Watlow RR Style RTD w/Double Fitting, Single 3-Wire, Cast Alum. Conn. Head, 1/4" OD, 3" SS Sheath, 1/2" NPT Fitting
RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style C - 5750 Non-Isolated Transmitter
Fitting H-Spring Loaded, Double Threaded, 316SS 1/2 NPT
Sheath Length 3.000
Tolerance [in] ± 0.125
Bend Straight Length
Transmitter Style C - 5750 Non-Isolated, Non-Linearized
Sensor Type 0 - RTD PT100 3-WIRE 00385
Unit of Measure F - Fahrenheit
Low Temperature Sign + Positive
Low Temperature 35
High Temperature Sign + Positive
High Temperature 220
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Part Code RRJEH0A030BB00X
RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style C - 5750 Non-Isolated Transmitter
Fitting H-Spring Loaded, Double Threaded, 316SS 1/2 NPT
Sheath Length 3.000
Tolerance [in] ± 0.125
Bend Straight Length
Transmitter Style C - 5750 Non-Isolated, Non-Linearized
Sensor Type 0 - RTD PT100 3-WIRE 00385
Unit of Measure F - Fahrenheit
Low Temperature Sign + Positive
Low Temperature 35
High Temperature Sign + Positive
High Temperature 220
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Part Code RRJEH0A030BB00X
Specifications
| RTD: Brand | Watlow |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Spring-Loaded, Double Threaded |
