Watlow RR Style RTD, Single 3-Wire, 1/4" OD x 3.5" SS Sheath, Aluminum Head, 5900 Transmitter

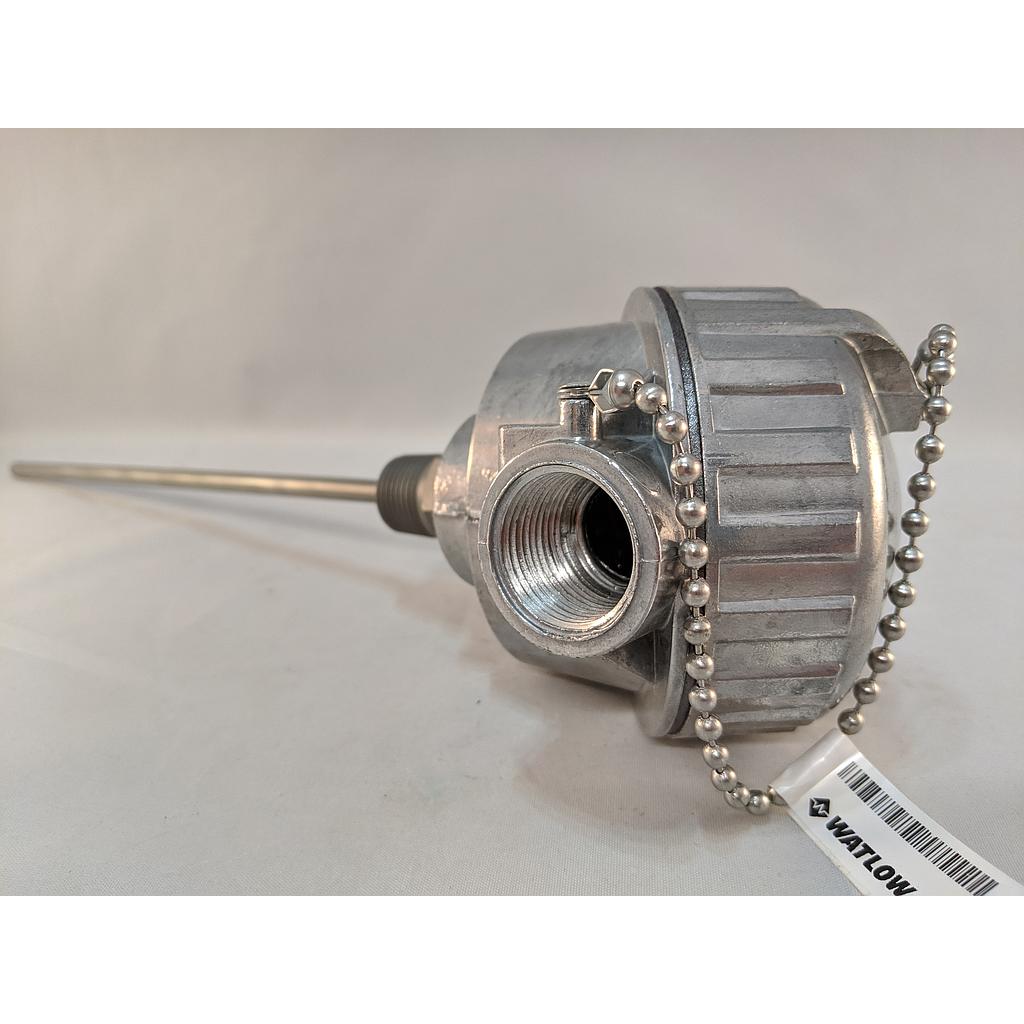

Representative photo. Please check item description for details.

Watlow RR Style RTD, Single 3-Wire, 1/4" OD x 3.5" SS Sheath, Aluminum Head, 5900 Transmitter

https://www.branom.com/web/image/product.template/545771/image_1920?unique=98dabbe
(0 review)

RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style B - 5900 Isolated Transmitter
Fitting H-Spring Loaded, Double Threaded, 316SS 1/2 NPT
Sheath Length 3.500
Tolerance [in] ± 0.125
Bend Straight Length
Transmitter Style B - 5950 Isolated, T/C or RTD
Sensor Type 0 - RTD PT100 3-WIRE 00385
Unit of Measure F - Fahrenheit
Low Temperature Sign + Positive
Low Temperature 0
High Temperature Sign + Positive
High Temperature 200
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Part Code RRJEH0A034BB00X


  • RTD: Brand
  • RTD: Accuracy
  • RTD: Circuit Type
  • RTD: Connection Size
  • RTD: Connection Type
  • RTD: Connection Type
  • RTD: Electrical Connection
  • RTD: Output
  • RTD: Length (Probe/Sheath/TW)
  • RTD: Stem Diameter
  • RTD: Wetted Material
  • RTD: Has Thermowell
  • RTD: Cover / Head Material
  • RTD: Min Temp
  • RTD: Max Temp

This combination does not exist.

Contact Us

Share

RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style B - 5900 Isolated Transmitter
Fitting H-Spring Loaded, Double Threaded, 316SS 1/2 NPT
Sheath Length 3.500
Tolerance [in] ± 0.125
Bend Straight Length
Transmitter Style B - 5950 Isolated, T/C or RTD
Sensor Type 0 - RTD PT100 3-WIRE 00385
Unit of Measure F - Fahrenheit
Low Temperature Sign + Positive
Low Temperature 0
High Temperature Sign + Positive
High Temperature 200
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Part Code RRJEH0A034BB00X

Specifications

RTD: Brand Watlow
RTD: Accuracy Class B
RTD: Circuit Type Single 3-Wire
RTD: Connection Size 1/2 NPT
RTD: Connection Type Double Threaded, Spring-Loaded
RTD: Electrical Connection Transmitter
RTD: Output Pl100 Ω
RTD: Length (Probe/Sheath/TW) 3.5 in
RTD: Stem Diameter 1/4 in
RTD: Wetted Material SS
RTD: Has Thermowell No
RTD: Cover / Head Material Aluminum
RTD: Min Temp 0 °F
RTD: Max Temp 200 °F
