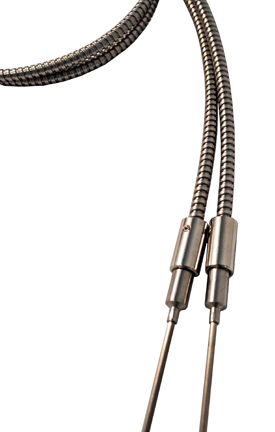

Watlow RF Style RTD, Single 3-Wire, 1/4" OD x 4" SS Mineral-Insulated Sheath, 720" Fiberglass Lead
RTD Sensor Style RF Style RTD
Outside Diameter [in] J - .250 Inch
Sheath Type K = 316/316L SS Mineral Insulated
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Mounting Options None
Bend Option Straight Length
Sheath Length [L] (In) 4.000
Lead Wire Construction A - Fiberglass Stranded
Lead Wire Length in inches 720
Lead Wire Termination T - Standard Leads
Sheath Cold End Style RF5-3/8" Trans w/Spring
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
RTD Sensor Style RF Style RTD
Outside Diameter [in] J - .250 Inch
Sheath Type K = 316/316L SS Mineral Insulated
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Mounting Options None
Bend Option Straight Length
Sheath Length [L] (In) 4.000
Lead Wire Construction A - Fiberglass Stranded
Lead Wire Length in inches 720
Lead Wire Termination T - Standard Leads
Sheath Cold End Style RF5-3/8" Trans w/Spring
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Specifications
| RTD: Brand | Watlow |
| RTD: Accuracy | Class A |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Electrical Connection | Fiberglass / Stranded Conductor Leadwire |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 4 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS, Mineral Insulated |
| RTD: Has Thermowell | No |
