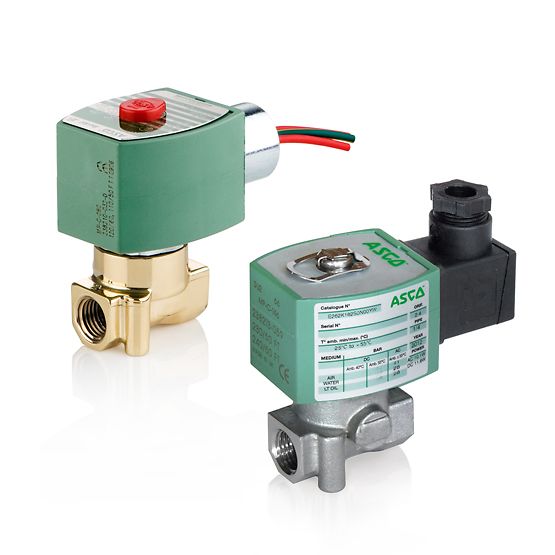

Representative photo. Please check item description for details.
Description
The ASCO Series 262/263 is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, and cryogenic fluids. The 262/263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Resilient materials provide long service life and low internal leakage
- Welded core tube provides higher pressure ratings
- Wide range of elastomers for specialty service applications
- Wide range of pressure ratings, sizes, and resilient materials provides long service life and low internal leakage
- Reliable and proven in use design with high flow and pressure ratings
- Lead-free versions available for Safe Drinking Water Act compliance
- Low-temperature models control cryogenic fluids, including liquid nitrogen (-320° F/-194° C), liquid argon (-303° F/-184° C), and liquid oxygen (-297° F/-181° C)
- Mountable in any position
- Tapped mounting holes in body standard
- Wide range of standard AC and DC voltages
- A full range of globally approved explosion-proof enclosures are available with this series
- Small poppet valves allow tight shutoff
Specifications
| Asco 8262 1/8" NC | |
|---|---|
| Orifice Size | All, 3/64", 3/32", 1/8" |
| Product Specifications | Brass | 3/64" Orifice | 0.06 Cv Flow, Brass | 3/64" Orifice | 0.06 Cv Flow, Brass | 3/64" Orifice | 0.06 Cv Flow, Brass | 3/64" Orifice | 0.06 Cv Flow, Brass | 3/32" Orifice | 0.21 Cv Flow, Brass | 3/32" Orifice | 0.21 Cv Flow, Brass | 3/32" Orifice | 0.21 Cv Flow, Brass | 1/8" Orifice | 0.35 Cv Flow, Brass | 1/8" Orifice | 0.35 Cv Flow, Brass | 1/8" Orifice | 0.35 Cv Flow, Stainless Steel | 3/64" Orifice | 0.06 Cv Flow, Stainless Steel | 3/64" Orifice | 0.06 Cv Flow, Stainless Steel | 3/64" Orifice | 0.06 Cv Flow, Stainless Steel | 3/64" Orifice | 0.06 Cv Flow, Stainless Steel | 3/64" Orifice | 0.06 Cv Flow, Stainless Steel | 3/32" Orifice | 0.21 Cv Flow, Stainless Steel | 3/32" Orifice | 0.21 Cv Flow, Stainless Steel | 3/32" Orifice | 0.21 Cv Flow, Stainless Steel | 1/8" Orifice | 0.35 Cv Flow, Stainless Steel | 1/8" Orifice | 0.35 Cv Flow, Stainless Steel | 1/8" Orifice | 0.35 Cv Flow |
| Solenoid Option | None, Explosionproof, Explosionproof (H173), Explosionproof (H277, H105, H179), Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H277, H105, H179), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (H277, H105, H179), Open Frame Spade and Screw Terminal Solenoids, Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, Class H - Intermediate Power, Class H - High Temperature, Class H - Intermediate Power - Screw Terminals, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - Intermediate Power - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - Intermediate Power - DIN Connection, Class F - High Temperature - Spade Terminals, Class F - Intermediate Power - Spade Terminals, Class H - Intermediate Power - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class H - Intermediate Power - DIN Connection, Class F - High Temperature - Mini 3 Pin Connector |
| Optional Leads | Standard, 72" Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Lead-Free | Without, Lead-Free |
| Optional Seat/Disc/Etc. Material | None, EPDM (Ethylene Propylene), CR (Chloroprene, Neoprene), Oxygen, Oxygen / FKM, PTFE, FKM, Long-Life Construction, Long-Life Construction / FKM |
| Optional Mounting Bracket | Without, Mounting Bracket |
| Optional Low Temperature | Without, Low Temperature |
| Optional Manual Operator | Without, Screw Type Manual Operator |
| Optional Vacuum | Without, High Vacuum |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Pipe Size | 1/8 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | NBR |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Flow Factor (Cv) | 0.06, 0.21, 0.35 |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Pressure (psi) | > 1000 to 3000 psi (68.95 to 206.8 bar) |
| Valve: Max Temperature °F | 131 |
| Valve: Mounting Position | Any |
| Valve: Orifice | 3/64in, 3/32in, 1/8in |
| Valve: Seal Material | NBR, Cast UR |
| Valve: Shading Coil | Copper, Silver |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Closed |
| Valve: Core Tube | Stainless Steel |
| Valve: Min Temperature °F | -13 |
