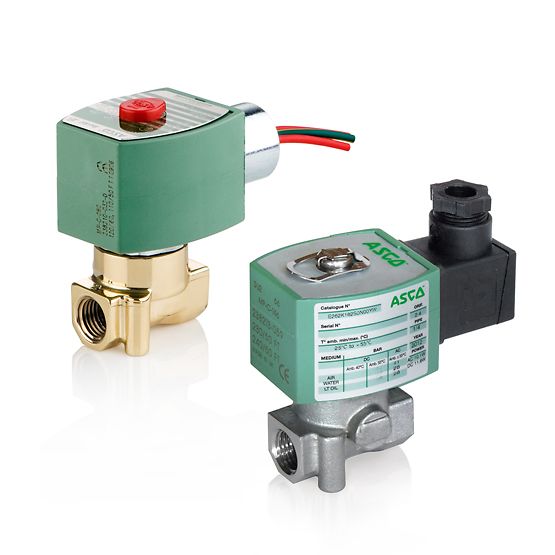

Representative photo. Please check item description for details.
Description
The ASCO Series 262/263 is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, and cryogenic fluids. The 262/263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Resilient materials provide long service life and low internal leakage
- Welded core tube provides higher pressure ratings
- Wide range of elastomers for specialty service applications
- Wide range of pressure ratings, sizes, and resilient materials provides long service life and low internal leakage
- Reliable and proven in use design with high flow and pressure ratings
- Lead-free versions available for Safe Drinking Water Act compliance
- Low-temperature models control cryogenic fluids, including liquid nitrogen (-320° F/-194° C), liquid argon (-303° F/-184° C), and liquid oxygen (-297° F/-181° C)
- Mountable in any position
- Tapped mounting holes in body standard
- Wide range of standard AC and DC voltages
- A full range of globally approved explosion-proof enclosures are available with this series
- Small poppet valves allow tight shutoff
Specifications
| Asco 8263 3/8" NC | |
|---|---|
| Orifice Size | All, 1/8", 5/32", 7/32", 9/32" |
| Product Specifications | Brass | 1/8" Orifice | 0.35 Cv Flow, Brass | 1/8" Orifice | 0.35 Cv Flow, Brass | 1/8" Orifice | 0.35 Cv Flow, Brass | 1/8" Orifice | 0.35 Cv Flow, Brass | 5/32" Orifice | 0.52 Cv Flow, Brass | 5/32" Orifice | 0.52 Cv Flow, Brass | 5/32" Orifice | 0.52 Cv Flow, Brass | 5/32" Orifice | 0.52 Cv Flow, Brass | 7/32" Orifice | 0.73 Cv Flow, Brass | 7/32" Orifice | 0.73 Cv Flow, Brass | 7/32" Orifice | 0.73 Cv Flow, Brass | 9/32" Orifice | 0.88 Cv Flow, Brass | 9/32" Orifice | 0.88 Cv Flow, Brass | 9/32" Orifice | 0.88 Cv Flow, Stainless Steel | 1/8" Orifice | 0.35 Cv Flow, Stainless Steel | 1/8" Orifice | 0.35 Cv Flow, Stainless Steel | 1/8" Orifice | 0.35 Cv Flow, Stainless Steel | 5/32" Orifice | 0.52 Cv Flow, Stainless Steel | 5/32" Orifice | 0.52 Cv Flow, Stainless Steel | 5/32" Orifice | 0.52 Cv Flow, Stainless Steel | 7/32" Orifice | 0.73 Cv Flow, Stainless Steel | 7/32" Orifice | 0.73 Cv Flow, Stainless Steel | 7/32" Orifice | 0.73 Cv Flow, Stainless Steel | 9/32" Orifice | 0.88 Cv Flow, Stainless Steel | 9/32" Orifice | 0.88 Cv Flow, Stainless Steel | 9/32" Orifice | 0.88 Cv Flow |
| Solenoid Option | None, Explosionproof (H003, H054, H115, H116, H117, H118, H119, H190, H191, H192, H193, H194), Explosionproof (H002, H196, H210), Explosionproof (H330), Explosionproof (H124, H125, H195, H197, H200, H206, H232, H331, H332), Explosionproof (H333), Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H002, H196, H210), Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H124, H125, H195, H197, H200, H206, H232, H331, H332), Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H003, H054, H115, H116, H118, H119, H190, H191, H192, H193, H194), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (H002, H196, H210), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (H003, H054, H115, H116, H118, H119, H190, H191, H192, H193, H194), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (H115, H118, H125, H193, H195, H197, H200, H206, H232, H331, H332), Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, Class H - Intermediate Power, Class H - High Temperature, Class H - Intermediate Power - Screw Terminals, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - Intermediate Power - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - Intermediate Power - DIN Connection, Class F - High Temperature - Spade Terminals, Class F - Intermediate Power - Spade Terminals, Class H - Intermediate Power - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class H - Intermediate Power - DIN Connection |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Seat/Disc/Etc. Material | None, EPDM (Ethylene Propylene), - CR (Chloroprene, Neoprene), Oxygen, Oxygen / FKM, Long-Life Construction, PTFE, FKM, Oxygen / PTFE |
| Optional Low Temperature | Without, Low Temperature, Low Temperature (H115, H125, H206, H210, H232) |
| Optional Mounting Bracket | Without, Mounting Bracket |
| Optional Manual Operator | Without, Screw Type Manual Operator |
| Optional Lead-Free | Without, Lead-Free |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Optional Vacuum | None |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Pipe Size | 3/8 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | NBR, Cast UR |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Flow Factor (Cv) | 0.35, 0.52, 0.73, 0.88 |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Pressure (psi) | > 300 to 500 psi (20.68 to 34.47 bar) |
| Valve: Max Temperature °F | 131 |
| Valve: Mounting Position | Any |
| Valve: Orifice | 1/8in, 5/32in, 7/32in, 9/32in |
| Valve: Seal Material | NBR, Cast UR |
| Valve: Shading Coil | Copper, Silver |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Closed |
| Valve: Core Tube | Stainless Steel |
| Valve: Min Temperature °F | -13 |
