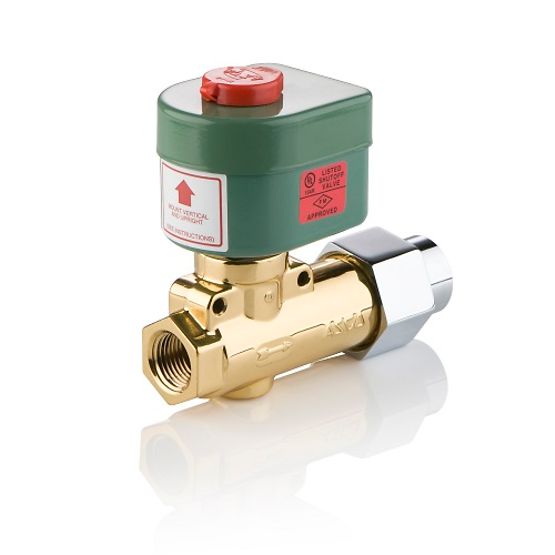

Representative photo. Please check item description for details.
Description
The ASCO Series 266-S, also known as 8266, is a line of 2-way or 3-way oil shut off solenoid valves designed specifically for the on-off control of fuel oil in commercial and industrial burners. The valves are suitable for light and heavy fuel oils.
Features
- General-purpose brass enclosure for a variety of applications
- 2-way normally closed or normally open operation
- Zero-differential lever actuation
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Asco 8266 NC | |
|---|---|
| Product Specifications | 3/8" Pipe | 1/8" Orifice | 0.34 Flow, 3/8" Pipe | 1/4" Orifice | 1.20 Flow, 1/2" Pipe | 1/8" Orifice | 0.34 Flow, 1/2" Pipe | 3/16" Orifice | 0.68 Flow, 1/2" Pipe | 3/16" Orifice | 0.68 Flow, 1/2" Pipe | 13/64" Orifice | 0.78 Flow, 1/2" Pipe | 1/4" Orifice | 1.20 Flow, 1/2" Pipe | 5/16" Orifice | 1.80 Flow, 1/2" Pipe | 3/8" Orifice | 2.50 Flow, 3/8" Pipe | 3/16" Orifice | 0.68 Flow, 3/8" Pipe | 3/16" Orifice | 0.68 Flow |
| Optional RedHat 3R - Rainproof | Without, RedHat 3R - Rainproof |
| Solenoid Option | None, Junction Box, Junction Box (D047, D069, D077), Factory Assembled Junction Box, Cable Gland w/Integral Strain Relief |
| Coil Options | None, Class H - Intermediate Power, Class H - High Temperature, Class F - High Temperature - Screw Terminals, Class F - High Temperature - DIN Connection |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Seating Material | FKM, Stainless Steel |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Pressure (psi) | > 300 to 500 psi (20.68 to 34.47 bar) |
| Valve: Pipe Size | 3/8 in, 1/2 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 2-Way Normally Closed |
| Valve: Body Material | Copper Alloy |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Springs | Stainless Steel |
| Valve: Shading Coil | Copper |
| Valve: Enclosure Type | Redhat - Type I, Redhat - Rainproof |
| Valve: Media | Fuel Oil |
| Valve: Seats / Seat Insert | FKM |
| Valve: Orifice | 1/8in, 3/16in, 1/4in, 13/64in, 5/16in, 3/8in |
| Valve: Brand | Asco |
| Valve: Mounting Position | Vertical & Upright |
| Valve: Seal Material | FKM, Stainless Steel |
| Valve: Disc Material | FKM, Stainless Steel |
| Valve: Opening Time | <1s |
| Valve: Closing Time | <1s |
| Valve: Max Temperature °F | 104 |
| Valve: Flow Factor (Cv) | 0.34, 0.68, 0.78, 1.2, 1.8, 2.5 |
