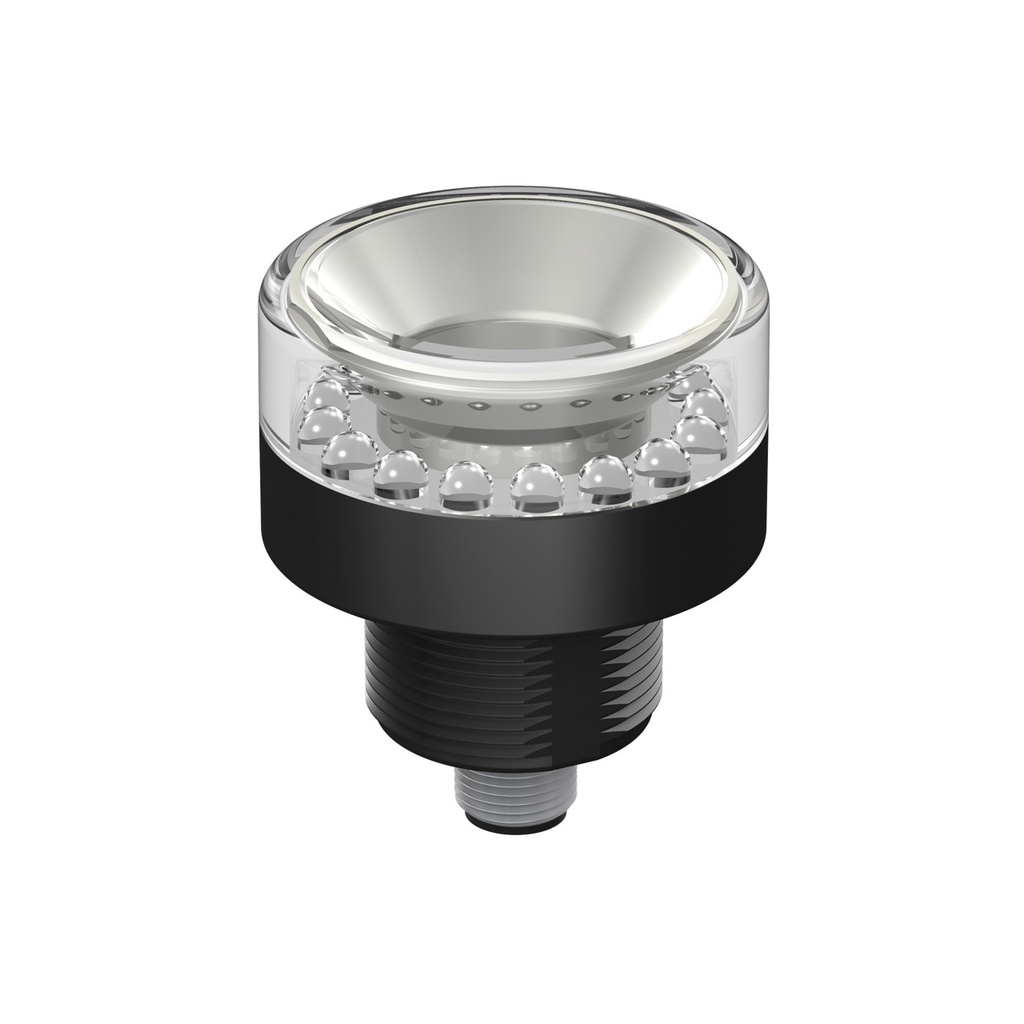

K50 Beacon Ez-Light Pwm Dimmable: 1-Color Perimeter & Top View (K50BCLXRX2PQ-26666)
Features:
- K50 Beacon EZ-LIGHT PWM Dimmable: 1-Color Perimeter & Top View ; Voltage: 12-30 V dc Housing: Polycarbonate IP69K; Input: PNP Colors: Red ; Euro 4-pin Integral Quick-Disconnect
- Power: DC
- Feature: Display: No
- Max Current Color: 160 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP67/69
- Housing Style: Base Mount - Flat Window
- Max Relative Humidity: 90% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Washdown Rated: Yes
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 50.0 x 60.0 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Supply Voltage: 12-30 VDC
- Feature: Quick Disconnect: Yes
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Red
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 1
- Product Size (mm): 50 mm
- Number of Input Pins/Conductors: 4
- Input Type: PNP
- Max Op. Relative NC Humidity: 90% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 7 ms
- Feature: Chemical Resistant: No
- Indication Intensity: High Brightness & Daylight Visible
- Connection Type: Integral QD
- NEMA / UL: UL 4X/13
- Cord/Cable Length: 150 mm
