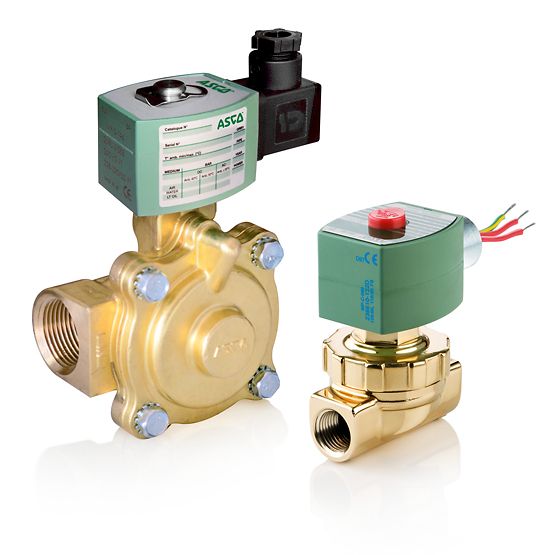

Representative photo. Please check item description for details.
Description
The ASCO 267-S Series solenoid valve is designed for high-temperature steam and hot water applications found in commercial laundry and kitchen equipment, heating systems, sterilizers, and autoclaves. Its features a unique, self-cleaning, straight-through design.
Features
- Direct acting straight-through, self-cleaning design
- Hot water service to 210 psi differential @ 210˚F;
- Steam service to 125 psi differential @ 353˚F
- Specify these valves for the high-temperature applications found
- in laundries, molding, steam atomization, sterilizers, autoclaves, and many others
Specifications
| Asco 8267 NC | |
|---|---|
| Product Specifications | 3/8" Pipe | 1/4" Orifice | 1.5 Flow, 3/8" Pipe | 3/8" Orifice | 5.1 Flow, 1/2" Pipe | 1/4" Orifice | 1.4 Flow, 1/2" Pipe | 3/8" Orifice | 4.5 Flow, 3/4" Pipe | 3/8" Orifice | 5.4 Flow, 3/4" Pipe | 1/2" Orifice | 9.7 Flow |
| Solenoid Option | None, Explosionproof, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, Class H - High Temperature - Screw Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, 72" Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Voltage | AC24/60, AC110/50, AC120/60, AC220/50, AC240/60 |
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 2-Way Normally Closed |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Springs | 302 SS |
| Valve: Shading Coil | Copper, Silver |
| Valve: Piston Material | Stainless Steel, PTFE |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Type I, Redhat - Explosionproof & Raintight |
| Valve: Media | Hot Water & Steam |
| Valve: Seats / Seat Insert | Glass-Filled PTFE |
| Valve: Brand | Asco |
| Valve: Seal Material | FKM, PTFE |
| Valve: Disc Material | Stainless Steel |
| Valve: Mounting Position | Any |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 5.1, 1.4, 4.5 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Pipe Size | 3/8 in, 1/2 in |
