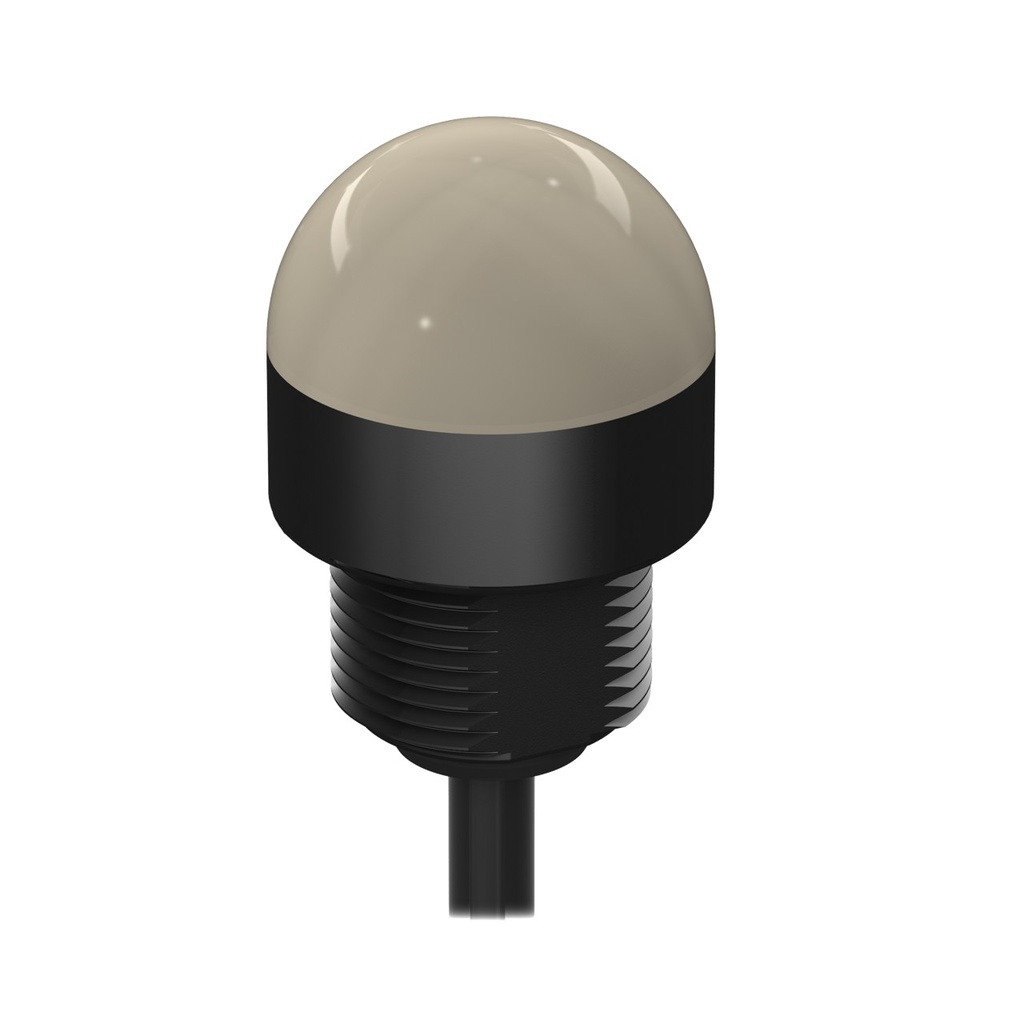

Representative photo. Please check item description for details.
K30Li Series Ez-Light: 1-Color Hazardous Area Indicator (K30LIYXXP)
Features:
- K30LI Series EZ-LIGHT: 1-Color Hazardous Area Indicator; Protection Type: Ex ia
- Intrinsically Safe; Voltage: 8-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Yellow ; 2 m (6.5 ft) cable
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP67/69
- Housing Style: Base Mount - Dome Window
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Washdown Rated: Yes
- Feature: Hazardous Area: Yes
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 30.0 x 44.5 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Supply Voltage: 8-30 VDC
- Feature: Quick Disconnect: No
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Yellow
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Number of Colors / Segments: 1
- Product Size (mm): 30 mm
- Number of Input Pins/Conductors: 4
- Input Type: PNP
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M22 x 1.5
- Feature: Chemical Resistant: No
- Storage Temp: -40 to 70 °C
- Connection Type: Cable
- NEMA / UL: UL 4X, 13
- NEMA / UL: UL 4X/13
- Cord/Cable Length: 2 m
