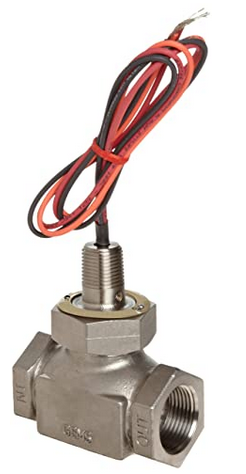

Gems FS-200 Flow Switch, 2" NPT, Stainless Steel Body, SPDT, 10 GPM Set Point
FS-200 Series Flow Switches offer accurate flow detection, with 1% repeatability, over a broad range of flow settings and port sizes. Its durable construction delivers long-life reliability in either water or oil. Generous flow paths keep pressure drop
low. These switches are ideal for detection of improper flow rates in high volume lubrication, cooling or process systems. Applications include: Protect Bearings or Gears (oil separators, fuel systems, pumps, compressors, presses), Electronics or
Machinery (heat exchangers, semiconductor manufacturing equipment, induction furnaces, radio transmitters), Process Systems (water filtration and reverse osmosis, chlorinators, de-icers, sterilizers, evaporators).
Sku: 27113
Sensor Type: Shuttle Type
Model: FS-200
Primary Material Of Construction: Alloy
Body Material: 316 Stainless Steel
Wetted Materials: 316 Stainless Steel, Teflon®, Viton, Ceramic
Minimum Pressure: 300
500 psi
Maximum Pressure: 400 psi
Minimum Temperature: -20°F
Maximum Temperature: 300°F
Flow Setting: 15 GPM
Flow Setting Range: 10.01-20.0 GPM
Adjustable Range: N/A
Set Point Accuracy: ±10%
Set Point Differential: 15%
Switch Type: SPDT (20 VA)
Port Size: 2" NPT Female
Electrical Termination: 24" Long, 18 AWG, Polymeric Leads
Recommended Filtration: 150 micron
Approvals: UL Recognized, UL Explosion Proof, CE, CSA, FM
Weight: 8.06
