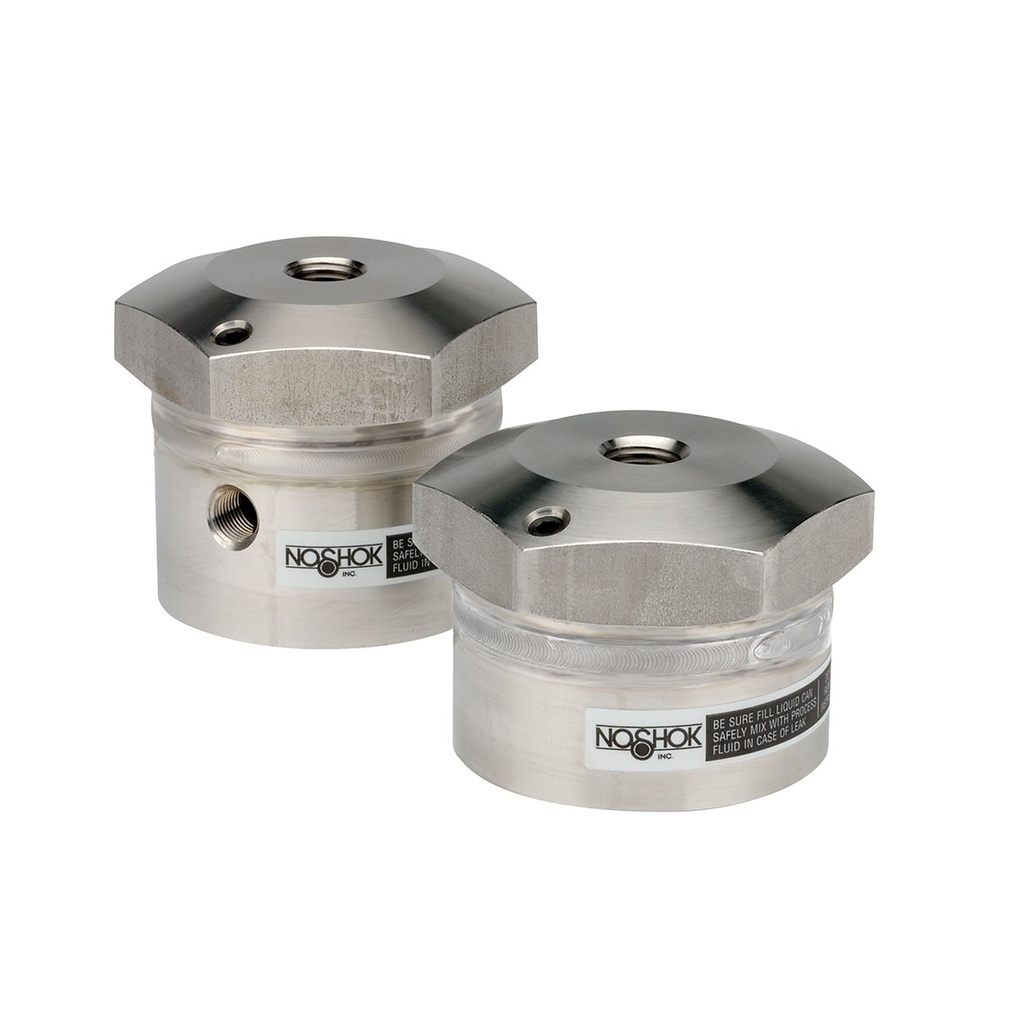

Representative photo. Please check item description for details.
Type 29 High Volumetric Displacement, Non-Replaceable Diaphragm Seal, 1/2" Instrument, 1/2" Process
- An off-line seal with a threaded connection and all welded, all metallic housing design that does not utilize an o-ring or gasket
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Designed with a larger diameter diaphragm for higher displacement capability
- A variety of upper and lower housing and diaphragm materials are available to suit most applications
- A flushing port is available to clean wetted areas and prevent process media build up
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- An off-line seal with a threaded connection and all welded, all metallic housing design that does not utilize an o-ring or gasket
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Designed with a larger diameter diaphragm for higher displacement capability
- A variety of upper and lower housing and diaphragm materials are available to suit most applications
- A flushing port is available to clean wetted areas and prevent process media build up
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Valve Features | |
|---|---|
| Valve: Diaphragm Material | 316 SS |
| Others | |
|---|---|
| Process Connection Type | NPT |
| Instrument Connection Size | 1/2" |
| Instrument Connection Type | NPT |
| Process Connection Size | 1/2" |
| Upper Housing Material | 316 SS |
| Lower Housing Material | 316 SS |
