  3. Pyromation, 3 Wire RTD With Transmitter, 6" Stem, Explosion Proof Housing, 0-100F {XP03 HL09-RBF185L483-S4D0608C8-SC-8HN76T82-D10-3I-85-00-A-U-S(0-100)F,I}
Public Pricelist (v2)

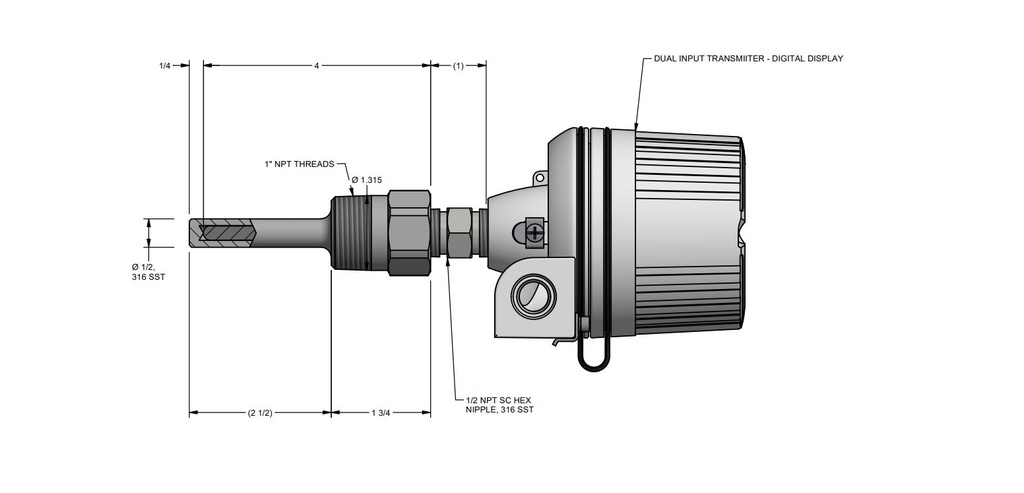

Representative photo. Please check item description for details.

Pyromation, 3 Wire RTD With Transmitter, 6" Stem, Explosion Proof Housing, 0-100F {XP03 HL09-RBF185L483-S4D0608C8-SC-8HN76T82-D10-3I-85-00-A-U-S(0-100)F,I}

https://www.branom.com/web/image/product.template/553151/image_1920?unique=ab032f9
(0 review)

• CSA US/CAN Explosion Proof Certified Assembly

• Single Element RTD

• 100 ohm Platinum

• Temperature Coefficient 0.00385 ohms per Degree C

• Tolerance Class B

• Temperature Range -50 to 200 Degrees C

• 1/4 Inch Diameter 316 Stainless Steel Sheath

• 3 Wire

• Standard Duty Threaded (NPT) - 0.260 Bore

•     316 Stainless Steel

•     3/4 Inch NPT Pipe Size

•     S Dimension: 6 Inches

•     U Dimension: 4(1/2) Inches

•     316 SS Cap and Chain

• Self-contained Spring-loaded Element

• 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple

• Stainless Steel Tag

• Series 82 (4 to 20) mA Dual Input Programmable HART Temperature Transmitter

• With Digital Display and Explosion-Proof Aluminum Housing and Glass Lid

•     Ch1: RTD 3-Wire  -  Ch2: Inactive

•     Sensor Input Channel 1:  100 Ohm Platinum (α = 0.003 85 °Cˉ¹)

•     No Second Channel

•     Process Variable = Channel 1; Channel 2 = Inactive

•     Upscale Burnout

•     Range: (0 - 100)F




$ 1,710.00 1710.0 USD $ 1,710.00

$ 1,710.00

Not Available For Sale

    This combination does not exist.
