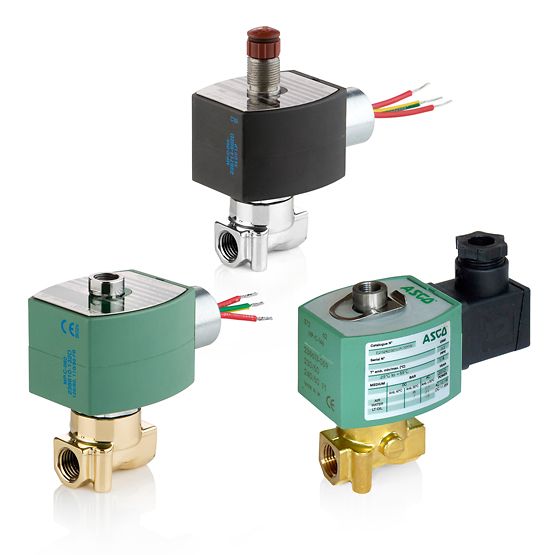

Representative photo. Please check item description for details.
Description
The ASCO Series 314, also known as 8314, is a line of direct-acting general service solenoid valves which can be used as moderate flow pilots for smaller control valves and actuators. With only a spring and two moving parts, the valve is ideal for basic three-way piloting operation It is suitable for analytical and diagnostic equipment, automotive, bottling, dust collector system, and life science applications.
Specifications
| Asco 8314 | |
|---|---|
| Product Specifications | Brass | 1/4" Pipe | 3/64" Orifice | 0.05 Flow, Brass | 1/4" Pipe | 3/32" Orifice | 0.15 Flow, Brass | 1/4" Pipe | 1/8" Orifice | 0.25 Flow |
| Solenoid Option | None, Explosionproof, Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, Panel Mount Type 1 General Purpose Solenoid, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Open Frame Spade and Screw Terminal Solenoids, Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, Class H - High Temperature, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - High Temperature - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Seat/Disc/Etc. Material | None, Oxygen, FKM |
| Optional Mounting Bracket | Without, Mounting Bracket |
| Optional Manual Operator | Without, Screw Type Manual Operator |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/4 in |
| Valve: Orifice | 3/64in, 3/32in, 1/8in |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Core Springs | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Core Guide | POM |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 3-Way Universal |
| Valve: Media | Air-Inert Gas, Water, Light Oil |
| Valve: Brand | Asco |
| Valve: Seal Material | Nitrile |
| Valve: Disc Material | Nitrile (Upper Disk - FKM) |
| Valve: Min Temperature °F | -13 |
| Valve: Max Temperature °F | 131 |
| Valve: Flow Factor (Cv) | 0.05, 0.15, 0.25, 0.06, 0.20 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
