Description

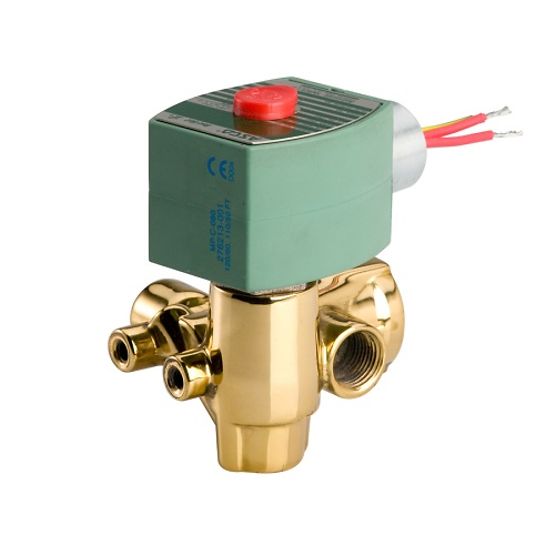

The ASCO Series 317 and 321, also known as 8317 and 8321, quick-exhaust solenoid valves are designed for quick venting to 0 psi through their external orifice. Air is exhausted to rapidly shift control valves. The pilot-operated valves have resilient seated poppets for tight shutoff. They are well suited for refining, chemical, and food and beverage applications that require a quick-exhaust valve.
Features
- NO (Open when de-energized)
- Valves are available in voltage-ranging and harsh-environment constructions
- Next Gen solenoid models available that reduce power consumption, increase AC and DC operating temperatures, and extend coil life
- Mountable in any position for flexible installation
- ATEX, IECEx certifications for operation in hazardous conditions
Specifications
| Asco 8317/8321 NO QE | |
|---|---|
| Product Specifications | Brass | 1/4" Pipe | 3/32" Orifice | .15 Cv Flow, Brass | 1/4" Pipe | 9/32" Orifice | .80 Cv Flow, Brass | 3/8" Pipe | 9/32" Orifice | .80 Cv Flow |
| Solenoid Option | None, Explosionproof (G003, G004), Explosionproof (G053), Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G003, G004), Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G053), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (G053), Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, Class H - High Temperature, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - High Temperature - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Seat/Disc/Etc. Material | None, EPDM (Ethylene Propylene), FKM (G003, G004), FKM (G053) |
| Optional Manual Operator | Without, Manual Operator, Screw Type Manual Operator |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/4 in, 3/8 in |
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Core Tube | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Function | 3/2 Normally Closed |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Diaphragm Material | CR |
| Valve: Core Springs | Stainless Steel |
| Valve: Orifice | 3/32in, 9/32in |
| Valve: Pilot Seat Cartridge | CA |
| Valve: Disc-Holder | CA |
| Valve: Piston Material | Brass, Stainless Steel |
| Valve: Brand | Asco |
| Valve: Mounting Position | Any |
| Valve: Seal Material | NBR |
| Valve: Disc Material | NBR (PA Upper Disc), NBR |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 0.15, 0.80 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
