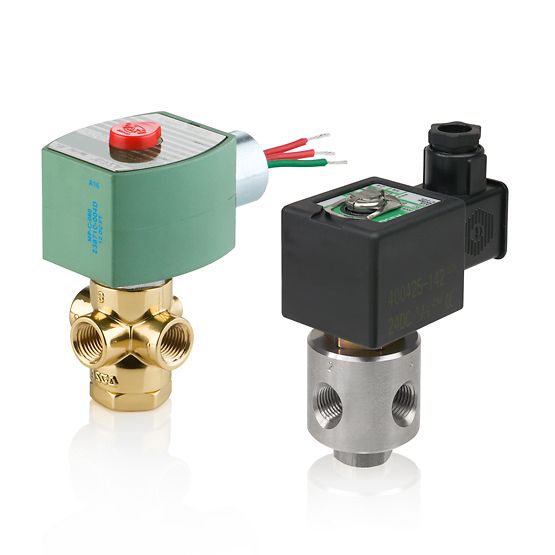

Representative photo. Please check item description for details.
Description
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum operating pressure differential required
- Available in brass and stainless-steel constructions
- Mountable in any position
- Long-life version eliminates metal-to-metal contact to extend life up to 20 million cycles in dry air or gas applications. Easily handles rapid cycling or continuous energization
- Harsh-environment model offers low power consumption plus quick shutdown of valves and actuators. Valves are UL, CSA, ATEX, and IIECEx certified
- RedHat Next-Generation model offers voltage-ranging with low-power operation. Valves have Class I, Division 2 coils
Specifications
| Asco 8320 NC DM | |
|---|---|
| Product Specifications | Brass | 1/16" Orifice | .09 Cv Flow, Brass | 3/32" Orifice | .12 Cv Flow, Brass | 1/16" Orifice | .09 Cv Flow, Brass | 3/32" Orifice | .12 Cv Flow, Brass | 1/8" Orifice | .21 Cv Flow, Stainless Steel | 1/16" Orifice | .09 Cv Flow, Stainless Steel | 3/32" Orifice | .12 Cv Flow, Stainless Steel | 1/16" Orifice | .09 Cv Flow, Stainless Steel | 3/32" Orifice | .12 Cv Flow, Stainless Steel | 1/8" Orifice | .21 Cv Flow |
| Solenoid Option | None, Explosionproof, Explosionproof (G703, G704, G705, G713, G714), Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G703, G704, G705, G713, G714), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (G703, G704, G705, G713, G714), Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, Class H - Intermediate Power, Class H - High Temperature, Class H - Intermediate Power - Screw Terminals, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - Intermediate Power - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - Intermediate Power - DIN Connection, Class F - High Temperature - Spade Terminals, Class F - Intermediate Power - Spade Terminals, Class H - Intermediate Power - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class H - Intermediate Power - DIN Connection, Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Seat/Disc/Etc. Material | None, EPDM (Ethylene Propylene), FKM |
| Optional Manual Operator | Without, Manual Operator, Screw Type Manual Operator |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/4 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 3-Way Normally Closed |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Core Springs | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Disc-Holder | CA |
| Valve: Core Guide | CA |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Media | Air-Inert Gas |
| Valve: Brand | Asco |
| Valve: Mounting Position | Any |
| Valve: Seal Material | NBR |
| Valve: Disc Material | NBR |
| Valve: Min Temperature °F | 0 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 0.09, 0.12, 0.21 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
