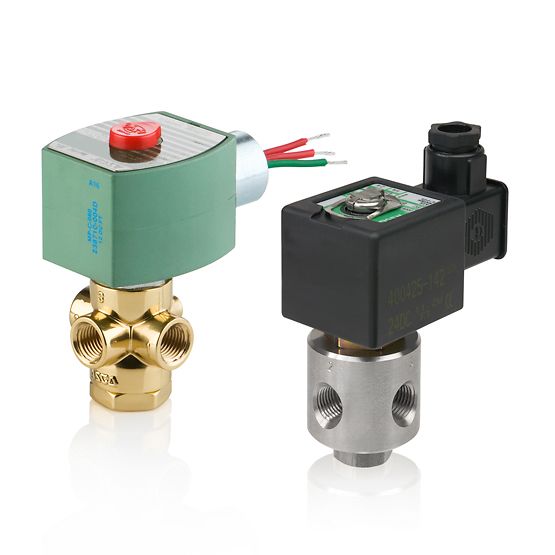

Representative photo. Please check item description for details.
Description
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum Operating Pressure Differential required
- Broadest range of applications
- Mountable in any position
Specifications
| Asco 8320 1/8" NC | |
|---|---|
| Product Specifications | Brass | 1/16" Orifice | 0.09 Cv Flow, Stainless Steel | 1/16" Orifice | 0.09 Cv Flow |
| Solenoid Option | None, Panel Mount Type 1 General Purpose Solenoid, Explosionproof, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Panel Mount Junction Box, Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, Class H - Intermediate Power, Class H - High Temperature, Class H - Intermediate Power - Screw Terminals, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - Intermediate Power - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - Intermediate Power - DIN Connection, Class F - High Temperature - Spade Terminals, Class F - Intermediate Power - Spade Terminals, Class H - Intermediate Power - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection, Class H - Intermediate Power - DIN Connection, Class F - High Temperature - Mini 3 Pin Connector |
| Lead Length | Standard, 18" Leads |
| Optional Seat/Disc/Etc. Material | None, EPDM (Ethylene Propylene), CR (Chloroprene, Neoprene), Oxygen, PTFE, FKM |
| Optional Manual Operator | Without, Manual Operator, Screw Type Manual Operator |
| Voltage | AC 24/60, AC 110/50, AC 120/60, AC 120/60 (110/50), AC 220/50, AC 240/60, AC 240/60 (220/50), DC 6, DC 12, DC 24, DC 120, DC 240 |
| Optional Lead Type | Standard |
| Valve Features | |
|---|---|
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
| Valve: Pipe Size | 1/8 in |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Disc-Holder | CA |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Core Springs | Stainless Steel |
| Valve: Core Guide | CA |
| Valve: Function | 3-Way Normally Closed |
| Valve: Brand | Asco |
| Valve: Seal Material | NBR, Cast UR |
| Valve: Min Temperature °F | 32 |
| Valve: Disc Material | NBR, Cast UR |
| Valve: Flow Factor (Cv) | 0.09 |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any |
