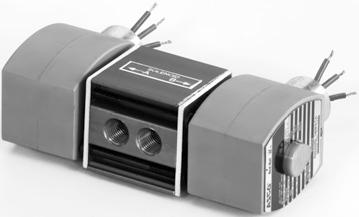

Representative photo. Please check item description for details.
Description
Features
- Air-only design for cylinder control
- Up to eight single and dual solenoid valves, in any combination, can be manifolded
- Sub-base constructions have separate cylinder connections and common pressure and exhaust connections at each end. Can be assembled in the field by simply inserting tie rods through holes in base
- Group-mounted constructions have common pressure connections at each end and separate cylinder and exhaust connections
- Can be factory assembled or grouped in the field with strong snap-on clamps, supplied
Specifications
| Asco 8340 | |
|---|---|
| Product Specifications | Single Valve | Single Solenoid, Single Valve | Dual Solenoid, Group Mounted | Single Solenoid, Group Mounted | Dual Solenoid, Sub-Base Mounted | Single Solenoid, Sub-Base Mounted | Dual Solenoid |
| Solenoid Option | None, Explosionproof (Single), Explosionproof (Dual), Panel Mount Type 1 General Purpose Solenoid, Junction Box (Single), Junction Box (Dual), Factory Assembled Junction Box (Single), Factory Assembled Junction Box (Dual), Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (Single), Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (Dual), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (Single), Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (Dual), Open Frame Spade and Screw Terminal Solenoids, Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, Class H - Intermediate Power (Single), Class H - Intermediate Power (Dual), Class H - High Temperature (Dual), Class H - High Temperature (Single), Class H - Intermediate Power - Screw Terminals (Single), Class H - Intermediate Power - Screw Terminals (Dual), Class F - High Temperature - Screw Terminals (Single), Class F - High Temperature - Screw Terminals (Dual), Class H - High Temperature - Screw Terminals (Single), Class H - High Temperature - Screw Terminals (Dual), Class F - Intermediate Power - Screw Terminals, Class F - Intermediate Power - Screw Terminals (Dual), Class F - High Temperature - DIN Connection (Single), Class F - High Temperature - DIN Connection (Dual), Class F - Intermediate Power - DIN Connection (Single), Class F - Intermediate Power - DIN Connection (Dual), Class F - High Temperature - Spade Terminals, Class F - Intermediate Power - Spade Terminals, Class H - Intermediate Power - Spade Terminals (Single), Class H - Intermediate Power - Spade Terminals (Dual), Class H - High Temperature - Spade Terminals (Single), Class H - High Temperature - Spade Terminals (Dual), Class H - High Temperature - DIN Connection (Single), Class H - High Temperature - DIN Connection (Dual), Class H - Intermediate Power - DIN Connection (Single), Class H - Intermediate Power - DIN Connection (Dual), Class F - High Temperature - Mini 3 Pin Connector (Single), Class F - High Temperature - Mini 3 Pin Connector (Dual) |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Seat/Disc/Etc. Material | None, FKM |
| Optional Mounting Bracket | Without, Mounting Bracket |
| Optional Manual Operator | Without, Manual Operator (A004), Manual Operator (A003, G001) |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/4 in |
| Valve: Orifice | 5/64in |
| Valve: Body Material | Aluminum |
| Valve: Disc Material | PE |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Core Springs | Stainless Steel |
| Valve: Shading Coil | Copper |
| Valve: Seal Material | NBR |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Type I, Redhat - Explosionproof |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 4-Way Single Solenoid, 4-Way Dual Solenoid |
| Valve: Media | Air-Inert Gas |
| Valve: Brand | Asco |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 0.10 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
