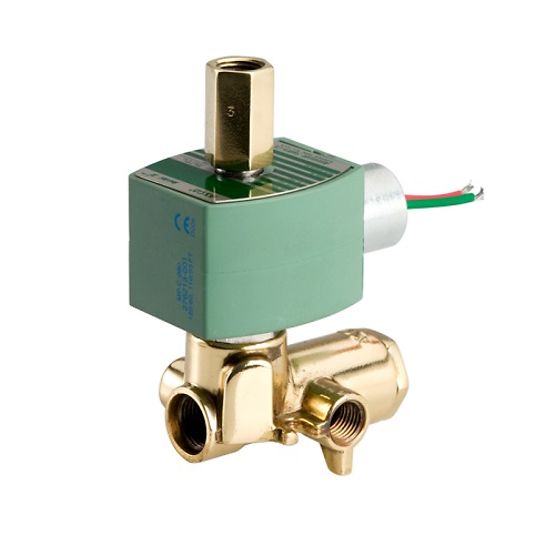

Representative photo. Please check item description for details.
Description
The ASCO Series 345, also known as 8345,is a line of compact 4-way
general service valves that are designed for low-flow applications. The
valves are commonly used in analytical and diagnostic equipment, biofuel
and heating systems, and refineries.
Features
- Compact valves for low-flow, general service applications
- Available in intrinsically safe, voltage-ranging, and long-life constructions
- Mountable in any position for installation flexibility
- Brass and stainless steel bodies available for a wide range of applications
- Molded one-piece solenoid with highly efficient solenoid cartridge and special low wattage coil
- Increased ambient temperature capabilities up to 175°F (80°C)
- Designed for use in automation of plant control systems to provide:
- PLC compatibility
- Reduced battery drain
- Reduced heat rise
- Reduced wiring cost
- Air or inert gas only
- Lower-cost alternative to intrinsically safe valves in critical applications not requiring a safety barrier
Specifications
| Asco 8344 1.4 Single | |
|---|---|
| Product Specifications | Brass | 1/4" Pipe | 1/16" Orifice | .08 Cv Flow, Stainless Steel | 1/4" Pipe | 1/16" Orifice | .08 Cv Flow |
| Solenoid Option | None, Explosionproof, Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, Class H - High Temperature (G301), Class H - High Temperature (G381), Class F - High Temperature - Screw Terminals, Class F - High Temperature - DIN Connection |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Manual Operator | Without, Manual Operator ⁴⁵ |
| Voltage | DC12/DC, DC24/DC, DC120/DC |
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid |
| Valve: Media | Air-Inert Gas |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Pipe Size | 1/4 in |
| Valve: Sleeve | Stainless Steel |
| Valve: Core and Plugnut | 430F SS |
| Valve: Rider Rings | PTFE |
| Valve: Spring Retainer | POM |
| Valve: Orifice | 1/16in |
| Valve: Function | 4-Way |
| Valve: Core Springs | 302 SS |
| Valve: Brand | Asco |
| Valve: Seal Material | NBR |
| Valve: Disc Material | NBR |
| Valve: Max Temperature °F | 175 |
| Valve: Flow Factor (Cv) | 0.08 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
