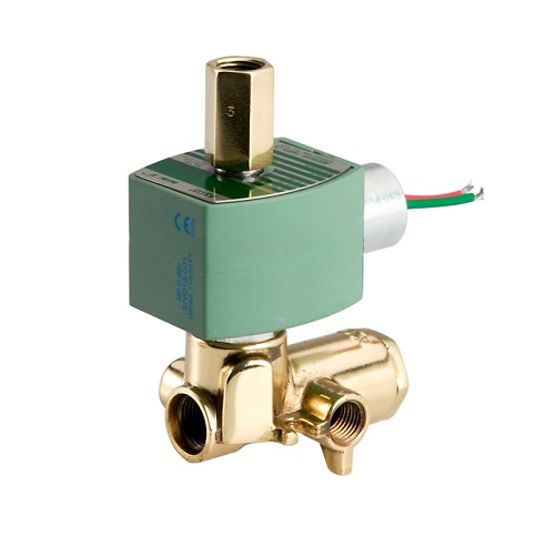

Representative photo. Please check item description for details.
Description
The ASCO Series 345, also known as 8345, is a line of compact 4-way general service valves that are designed for low-flow applications. The valves are commonly used in analytical and diagnostic equipment, biofuel and heating systems, and refineries.
Features
- Compact valves for low-flow, general service applications
- Available in intrinsically safe, voltage-ranging, and long-life constructions
- Mountable in any position for installation flexibility
- Brass and stainless steel bodies available for a wide range of applications
Specifications
| Asco 8345 Compact GP | |
|---|---|
| Product Specifications | Single Solenoid | Brass | 1/4" Pipe | 1/16" Orifice | .09 Cv Flow, Single Solenoid | Brass | 1/4" Pipe | 2" Orifice | .08 Cv Flow, Single Solenoid, Air-Only | Stainless Steel | 1/4" Pipe | 1/16" Orifice | .09 Cv Flow |
| Solenoid Option | None, Panel Mount Type 1 General Purpose Solenoid, Explosionproof, Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, Junction Box, Factory Assembled Junction Box, Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, Open Frame Spade and Screw Terminal Solenoids, Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, Class H - High Temperature, Class F - High Temperature - Screw Terminals, Class H - High Temperature - Screw Terminals, Class F - High Temperature - DIN Connection, Class F - High Temperature - Spade Terminals, Class H - High Temperature - Spade Terminals, Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, Continuous Leads |
| Lead Length | Standard, 18" Leads, 72" Leads |
| Optional Seat/Disc/Etc. Material | None, FKM |
| Optional Manual Operator | Without, Manual Operator |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/4 in |
| Valve: Orifice | 1/16in, 2in |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Springs | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Piston Material | PA |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Function | 4-Way Single Solenoid |
| Valve: Media | Air-Inert Gas, Water, Light Oil |
| Valve: Brand | Asco |
| Valve: Mounting Position | Any |
| Valve: Seal Material | NBR, PA |
| Valve: Disc Material | NBR, PA |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 0.09 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
