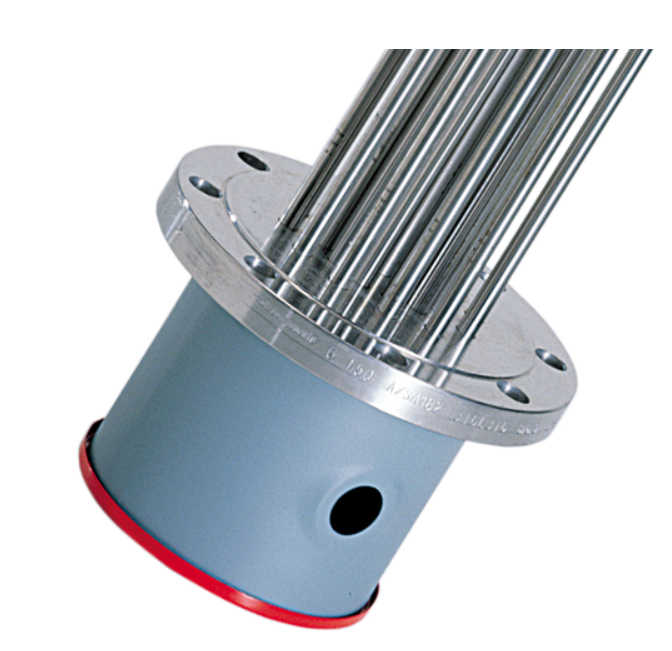

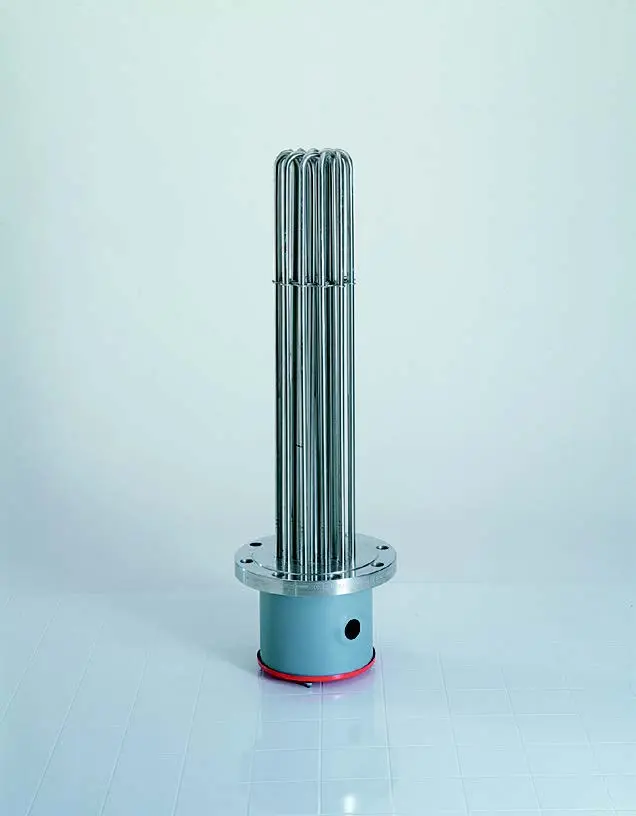

Representative photo. Please check item description for details.

TUBULAR FLANGE HEATER 480V/ 1,200W 11"IMMERSED LENGTH

https://www.branom.com/web/image/product.template/554298/image_1920?unique=f069c2d
(0 review)
Flange Voltage: 480
Flange Wattage: 1200
Watt Density: 8.3
B Dimension (Immersed element length): 11.0000
Number of Elements: 6 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 1
Flange Size: 4 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 3.0000
Passivate wetted parts? Yes
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Vertical Top
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 4.0000
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 4048-5947  FL7
