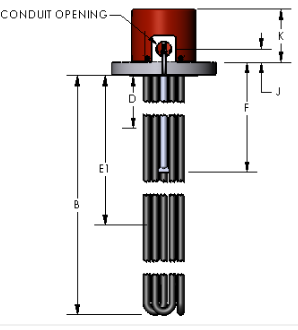

Representative photo. Please check item description for details.
Description
Details:
- Flange Voltage: 480
- Flange Wattage: 85000
- Watt Density: 19.9
- B Dimension (Immersed element length): 68.0000
- Number of Elements: 24 Elements
- Electrical Phase configuration: 3 Phase - Delta wiring
- Number of Circuits: 4
- Flange Size: 8 Inch Flange
- Flange Class: 150 lb.
- Flange Material: Steel Flange
- Sheath Material: 304 SS
- Baffles? With Baffles
- Baffle Orientation: U Configuration, Inlet Near Flange
- Cold End Section below the Flange: 8.7500
- Passivate wetted parts? No
- Process Sensor: No Process Sensor
- Hi-Limit Sensor: Type K Thermocouple
- Thermowell required? No
- Mounting Orientation: Horizontal
- Number of Hilimit Sensors (1 or 2): 1
- First Hi-Limit Location: 60.0000
- Stand-off Terminal Enclosure? No
- Terminal Enclosure: General Purpose (incl. CSA)
- CE Low Volt Directive required? No
- Nameplate Part Number: 4049-9245 FL7
