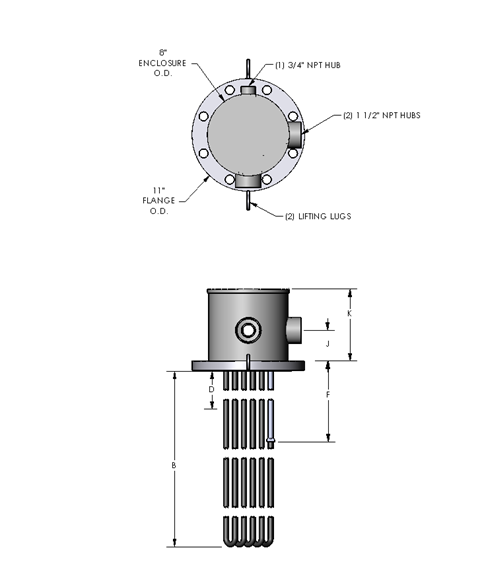

Representative photo. Please check item description for details.
Description
Circ Flange Size: 6 Inch
Circ Flange Class: 300 lb.
Flange/Vessel Material: 304 S/S Flange
Inlet/Outlet Nozzle Size: 2.5 inch
Nozzle Connection: Male NPT
Cold End (below flange): 5.6250
Inlet Configuration: U Configuration, Inlet nozzle near flange
Orientation: Horizontal
Mounting: Blocks
Process Sensor (Outlet Nozzle): None
Gasket: 700 degree F, Compressed Fiber
Insulation Material: Fiberglass
Shroud Material: Aluminum
Flange Voltage: 480
Flange Wattage: 30000
Watt Density: 9.9
B Dimension (Immersed element length): 72.5625
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 1
Flange Size: 6 Inch Flange
Flange Class: 300 lb.
Flange Material: 304 Stainless Steel Flange
Sheath Material: Alloy 840
Baffles? With Baffles
Baffle Orientation: U Configuration, Inlet Near Flange
Cold End Section below the Flange: 5.6250
Passivate wetted parts? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type K Thermocouple
Thermowell required? No
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 64.5625
Stand-off Terminal Enclosure? Yes
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
