Wika 332.54 Series Dry Precision Test Pressure Gauge, 4" Dial, 0 to 400 psi, 1/4 NPT SS Lower Mount
Applications
- With liquid-filled case for applications with high dynamic pressure loads or vibrations
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Precision measurement in laboratories
- High-accuracy pressure measurement
- Testing of industrial type pressure gauges
Special Features
- Completely from stainless steel
- Knife edge pointer for optimal accuracy of reading
- Wear-resistant precision movement from stainless steel
- Scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 psi to 0 ... 20,000 psi]
Features

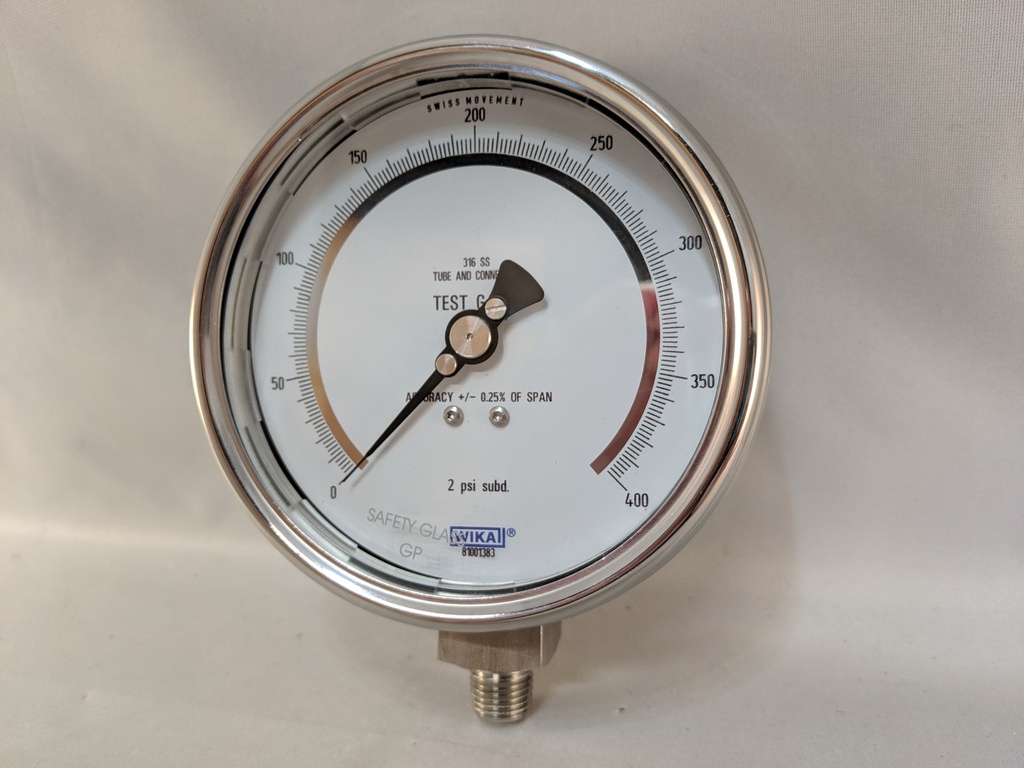

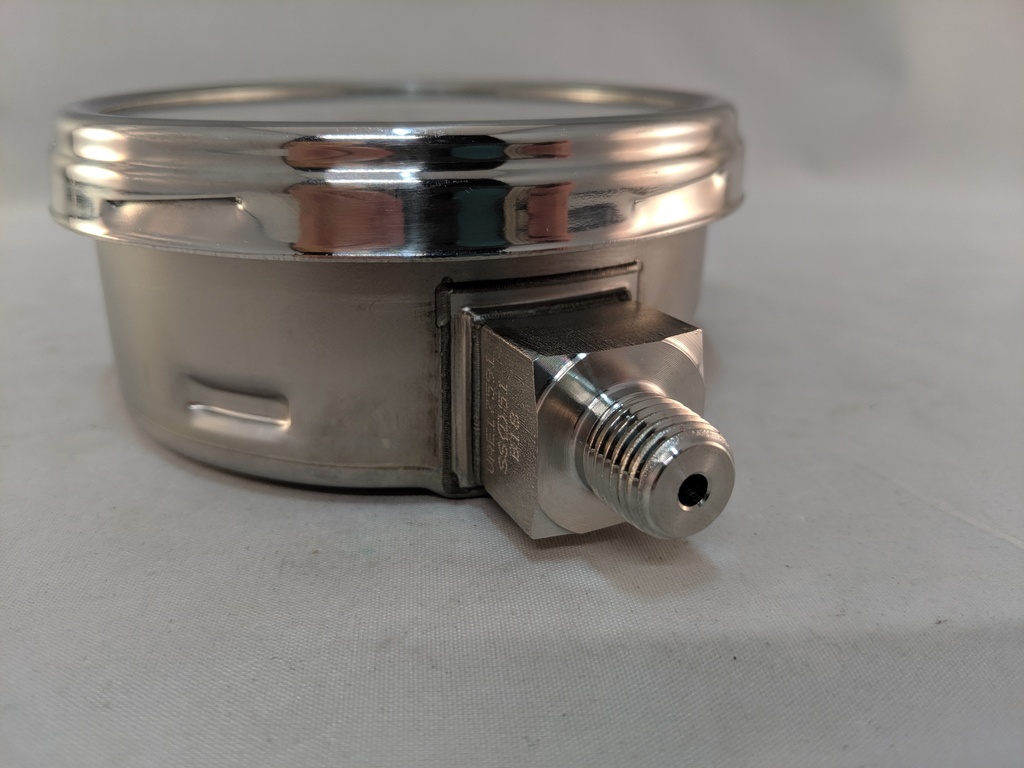

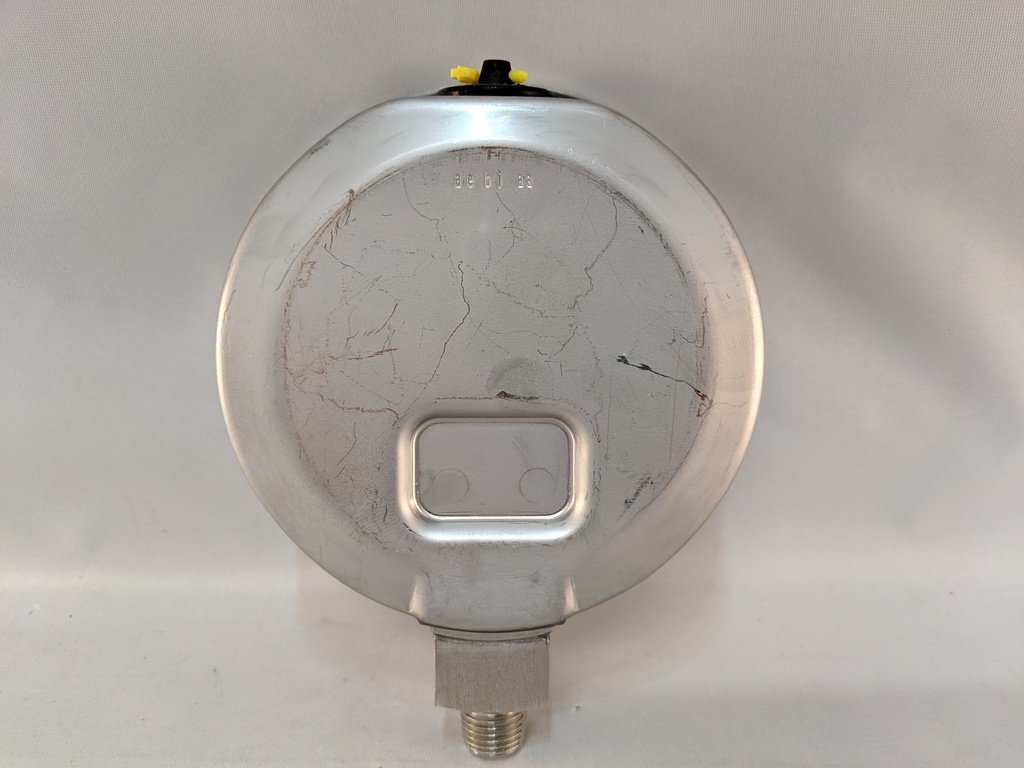

- 332.54 4 400PSI 1/4 L
- 332.54 4 400PSI 1/4"NPT LM;
- DIAL PER WN12.095, *R* *WIKA*;
- *316 SS TUBE AND CONNECTION*,
- *TEST GAUGE* ABOVE POINTER AXIS; *ACCURACY +/- 0.25% OF SPAN*
- BELOW DIAL RIVTS;
- CASE STAINLESS STEEL WITH PLUG; BAYONET RING SS POLISHED;
- 316L SS WETTED PARTS
- ADJUSTABLE KNIFE EDGE POINTER, ALUMINUM BLACK;
- DIAL ALUMINUM WHITE WITH MIRROR BAND;
- ACCURACY ± 0.25% OF SPAN PER ASME B40.1, GRADE 3A;
Applications
- With liquid-filled case for applications with high dynamic pressure loads or vibrations
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Precision measurement in laboratories
- High-accuracy pressure measurement
- Testing of industrial type pressure gauges
Special Features
- Completely from stainless steel
- Knife edge pointer for optimal accuracy of reading
- Wear-resistant precision movement from stainless steel
- Scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 psi to 0 ... 20,000 psi]
Features
- 332.54 4 400PSI 1/4 L
- 332.54 4 400PSI 1/4"NPT LM;
- DIAL PER WN12.095, *R* *WIKA*;
- *316 SS TUBE AND CONNECTION*,
- *TEST GAUGE* ABOVE POINTER AXIS; *ACCURACY +/- 0.25% OF SPAN*
- BELOW DIAL RIVTS;
- CASE STAINLESS STEEL WITH PLUG; BAYONET RING SS POLISHED;
- 316L SS WETTED PARTS
- ADJUSTABLE KNIFE EDGE POINTER, ALUMINUM BLACK;
- DIAL ALUMINUM WHITE WITH MIRROR BAND;
- ACCURACY ± 0.25% OF SPAN PER ASME B40.1, GRADE 3A;
Specifications
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Case Material | Stainless Steel |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Process Connection Size | 1/4 NPT |
| Gauge: Accuracy | ±0.25% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 332.54 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Others | |
|---|---|
| Measurement Maximum | 400.0 |
| Process Connection Type | NPT |
| Dial Size | 4 in (100 mm) |
| Fill Type | Dry |
| Max Operating Pressure | 400 psi |
| Max Operating Temperature | 140 °F |
| Process Connection Location | Lower |
| Case Material | Stainless Steel |
| Measurement Minimum | 0 |
| Ingress Protection | IP66 |
| Ring Style | Bayonet |
| NEMA / UL | NEMA 4X |
