ATC Multi-mode Multi-function Digital Timer 1/16 din, Sensert Connected

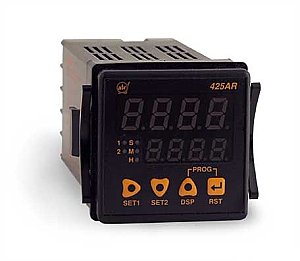

Model 425AR digital timer from Automatic Timing and Controls is a multi-function, multi range series. It comes standard with a 4-digit, 7-segment dual LED display. Features include LED status indicator, dual set-points and batch function. Specifications include gate /pulse start input, ±0.05% full scale accuracy, front panel / remote reset, built-in 12 vdc sensor supply, seven timing functions and 9 time ranges. The unit can be set for up/down counting direction and modes of operation include on-delay, interval, cyclic, forward-pause-reverse, instantaneous contact and delayed batch. The Model 425AR series is available in a 1/16 DIN (48 x 48 mm) housing with 2 SPST (NO) 5a @ 230 vac contacts and a supply operating voltage range of 90 to 270 vac/dc (50/60Hz). The 425AR series is UL approved and CE certified.
