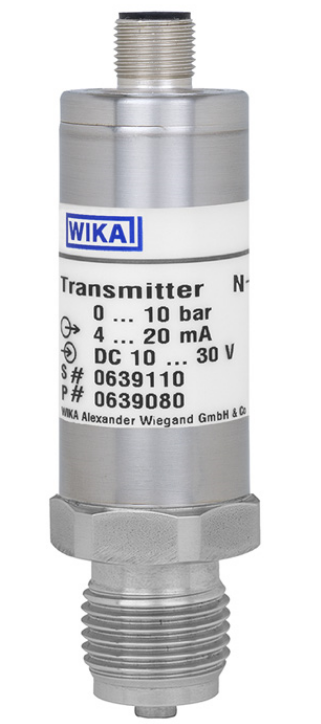

Representative photo. Please check item description for details.
Wika N-11 Non-Incendive Pressure Transmitter; 0-100 PSI; 4-20mA Output; G1/2 B Flush Diaphragm; 6' cable
Features:
- * Specifications according to data sheet: PE 81.26
- * Accuracy: 0.5% of span
- * Power Supply: DC 10 ... 30 V
- * Case: stainless steel
- * CE mark: Device is intended for use within North America according to NEC & CEC and will not bear the CE mark
- * Output signal: 4 ... 20 mA, 2-wire
- * Pressure Range: 0 ... 100 psi
- * Process Connection: G 1/2 B, flush diaphragm with O-ring
- * Material of Wetted Parts: Stainless Steel,NBR O-Ring
- * Electrical Connection: 1/2" NPT male conduit with free ends
- * Cable Length: 6 ft
- * Approvals: FM, CSA
- * Power supply: 10...30 V DC
- * pin assignment el. connection: UB=BN, 0V=GN
- Order Code: N-11-A-PBF-86-1ZG2X6F-ZZ W101-F2DZZ-ZFGSN2
Features:
- * Specifications according to data sheet: PE 81.26
- * Accuracy: 0.5% of span
- * Power Supply: DC 10 ... 30 V
- * Case: stainless steel
- * CE mark: Device is intended for use within North America according to NEC & CEC and will not bear the CE mark
- * Output signal: 4 ... 20 mA, 2-wire
- * Pressure Range: 0 ... 100 psi
- * Process Connection: G 1/2 B, flush diaphragm with O-ring
- * Material of Wetted Parts: Stainless Steel,NBR O-Ring
- * Electrical Connection: 1/2" NPT male conduit with free ends
- * Cable Length: 6 ft
- * Approvals: FM, CSA
- * Power supply: 10...30 V DC
- * pin assignment el. connection: UB=BN, 0V=GN
- Order Code: N-11-A-PBF-86-1ZG2X6F-ZZ W101-F2DZZ-ZFGSN2
Specifications
| Measurement Maximum | 100.0 |
| Process Connection Type | Metric |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP67 |
| NEMA / UL | NEMA 4X |
