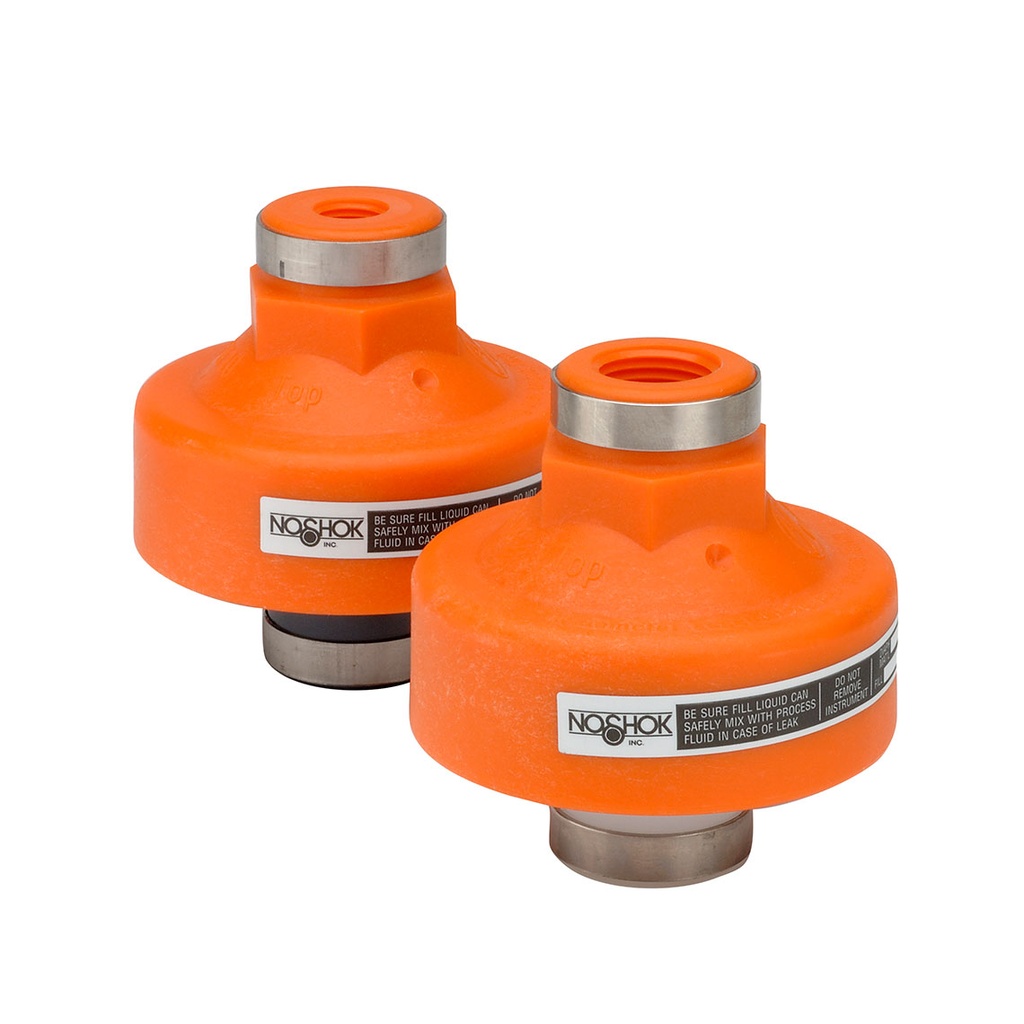

Type 5 Non-Metallic, Non-Replaceable Diaphragm Seal, 1/4" Instrument, 1/2" Process
- For wastewater and chemical feed applications, as well as most applications with a corrosive media
- Constructed of corrosion-resistant PP glass fiber reinforced upper housing and PP, PVC or PVDF lower housing
- Protects pressure or vacuum instruments used on ultra-pure or highly corrosive fluid lines such as demineralized water, sulfuric acid, hydrochloric acid, and caustics
- 100% non-metallic wetted parts assures maximum chemical and temperature compatibility
- For wastewater and chemical feed applications, as well as most applications with a corrosive media
- Constructed of corrosion-resistant PP glass fiber reinforced upper housing and PP, PVC or PVDF lower housing
- Protects pressure or vacuum instruments used on ultra-pure or highly corrosive fluid lines such as demineralized water, sulfuric acid, hydrochloric acid, and caustics
- 100% non-metallic wetted parts assures maximum chemical and temperature compatibility
Specifications
| Valve Features | |
|---|---|
| Valve: Diaphragm Material | EPDM-PTFE Coated on Process Side |
| Others | |
|---|---|
| Process Connection Type | NPT |
| Instrument Connection Size | 1/4" |
| Instrument Connection Type | NPT |
| Process Connection Size | 1/2" |
| Upper Housing Material | PP |
| Lower Housing Material | PP |
