Wika 233.50 Series Glycerine Filled Pressure Gauge, 4" Dial, 0 to 10 bar (psi), 1/2 NPT SS Lower Back Mount

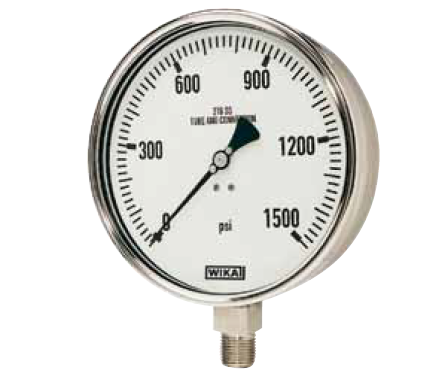

Representative photo. Please check item description for details.

Wika 233.50 Series Glycerine Filled Pressure Gauge, 4" Dial, 0 to 10 bar (psi), 1/2 NPT SS Lower Back Mount

https://www.branom.com/web/image/product.template/196917/image_1920?unique=f069c2d
(0 review)

Features

  • 233.50 4 10BAR/PSI 1/2 B FFNP CASE M&I
  • Type 23X.50 - SS Case - Pressure Gauges
  • Series
  • Typ: 233.50
  • Specifications according to data sheet: APM 02.02 and APM 02.03
  • Measuring System: Stainless Steel
  • Case Filling For Vibration Protection: with
  • Nominal Size: 4.0"
  • Range: 0/10 bar
  • 2nd Scale / Special Scale: 2nd scale psi
  • Process Connection: 1/2"NPT
  • Connector Position: lower back mount
  • Mounting Flange/Bracket: Front Flange, Stainless Steel
  • Window: Laminated Safety Glass
  • Pointer: adjustable pointer
  • Accuracy Class: +/- 1% (ASME B40.1 Grade 1A)
  • Case surface: bare case / polished ring
  • Material pressure element: Measuring System 316L
  • Case Filling For Vibration Protection: Glycerine
  • Dial description:
    • Pressure Gauge Standard: US-Standard
    • color for 1.scale (outside): black
    • color for 2.scale (inside): red pms 485
    • dial background: White
    • individual text for dial: p/n CMI4010 (ON DIAL IN BLACK)
    • customer logo beginning with: CA
    • customer logo: LOGO: **CASE M&I**
    • PMS COLORS:
    • YELLOW - PMS #130
    • BLUE - PMS #655

  • Gauge: Brand
  • Gauge: Type
  • Gauge: Product Unit of Measure
  • Gauge: 2nd Scale
  • Gauge: Process Connection Location
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Wetted Material
  • Gauge: Fill Type
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Scale Range

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Features

  • 233.50 4 10BAR/PSI 1/2 B FFNP CASE M&I
  • Type 23X.50 - SS Case - Pressure Gauges
  • Series
  • Typ: 233.50
  • Specifications according to data sheet: APM 02.02 and APM 02.03
  • Measuring System: Stainless Steel
  • Case Filling For Vibration Protection: with
  • Nominal Size: 4.0"
  • Range: 0/10 bar
  • 2nd Scale / Special Scale: 2nd scale psi
  • Process Connection: 1/2"NPT
  • Connector Position: lower back mount
  • Mounting Flange/Bracket: Front Flange, Stainless Steel
  • Window: Laminated Safety Glass
  • Pointer: adjustable pointer
  • Accuracy Class: +/- 1% (ASME B40.1 Grade 1A)
  • Case surface: bare case / polished ring
  • Material pressure element: Measuring System 316L
  • Case Filling For Vibration Protection: Glycerine
  • Dial description:
    • Pressure Gauge Standard: US-Standard
    • color for 1.scale (outside): black
    • color for 2.scale (inside): red pms 485
    • dial background: White
    • individual text for dial: p/n CMI4010 (ON DIAL IN BLACK)
    • customer logo beginning with: CA
    • customer logo: LOGO: **CASE M&I**
    • PMS COLORS:
    • YELLOW - PMS #130
    • BLUE - PMS #655

Specifications

Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Product Unit of Measure bar
Gauge: 2nd Scale psi
Gauge: Process Connection Location Lower Back Mount
Gauge: Ingress Protection IP 65
Gauge: Case Material Stainless Steel
Gauge: Wetted Material Stainless Steel
Gauge: Fill Type Liquid Filled / Fillable
Gauge: Dial Size 4 in (100 mm)
Gauge: Process Connection Size 1/2 NPT
Gauge: Accuracy ±1%
Gauge: Measuring Principle Bourdon Tube
Gauge: Pressure Type Gauge Pressure
Gauge: Model 233.50
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
