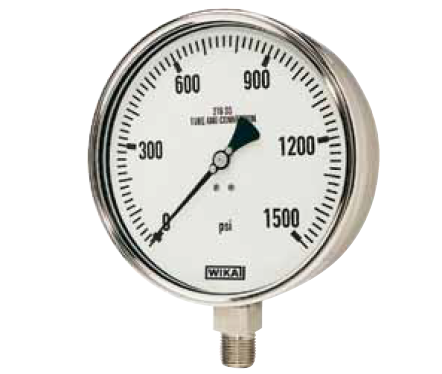

Representative photo. Please check item description for details.
Wika 233.50 Series Glycerine Filled Pressure Gauge, 4" Dial, -1 to 4 bar (psi), 1/2 NPT SS Lower Back Mount
- Specifications according to data sheet: PM 02.02
- Measuring System: Stainless Steel
- Case filling: with
- Nominal size: 100 mm
- Scale range: -1/4 bar
- 2nd Scale / Special Scale: 2nd scale psi
- Process Connection: 1/2 NPT
- Connector location: lower back mount
- Mounting Flange/Bracket: Front Flange, Stainless Steel
- Window: laminated safety glass
- Pointer: adjustable pointer
- Accuracy Class: +/- 1% (ASME B40.100 Grade 1A)
- Material pressure element: Measuring System 316L
- Case filling fluid: Glycerine
- Ingress Protection: IP 65
- Permissible medium temperature: + 100 °C
- Permissible ambient temperature: -20 ... +60 °C
- Pressure Gauge Standard: US-Standard
- color for 2.scale (inside): red
- with Serial number
- individual text for dial: *CASE M&I* LOGO
- P/N *CMI4-14* IN BLACK
- Specifications according to data sheet: PM 02.02
- Measuring System: Stainless Steel
- Case filling: with
- Nominal size: 100 mm
- Scale range: -1/4 bar
- 2nd Scale / Special Scale: 2nd scale psi
- Process Connection: 1/2 NPT
- Connector location: lower back mount
- Mounting Flange/Bracket: Front Flange, Stainless Steel
- Window: laminated safety glass
- Pointer: adjustable pointer
- Accuracy Class: +/- 1% (ASME B40.100 Grade 1A)
- Material pressure element: Measuring System 316L
- Case filling fluid: Glycerine
- Ingress Protection: IP 65
- Permissible medium temperature: + 100 °C
- Permissible ambient temperature: -20 ... +60 °C
- Pressure Gauge Standard: US-Standard
- color for 2.scale (inside): red
- with Serial number
- individual text for dial: *CASE M&I* LOGO
- P/N *CMI4-14* IN BLACK
Specifications
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | bar |
| Gauge: 2nd Scale | psi |
| Gauge: Process Connection Location | Lower Back Mount |
| Gauge: Ingress Protection | IP 65 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Process Connection Size | 1/2 NPT |
| Gauge: Accuracy | ±1% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 233.50 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
