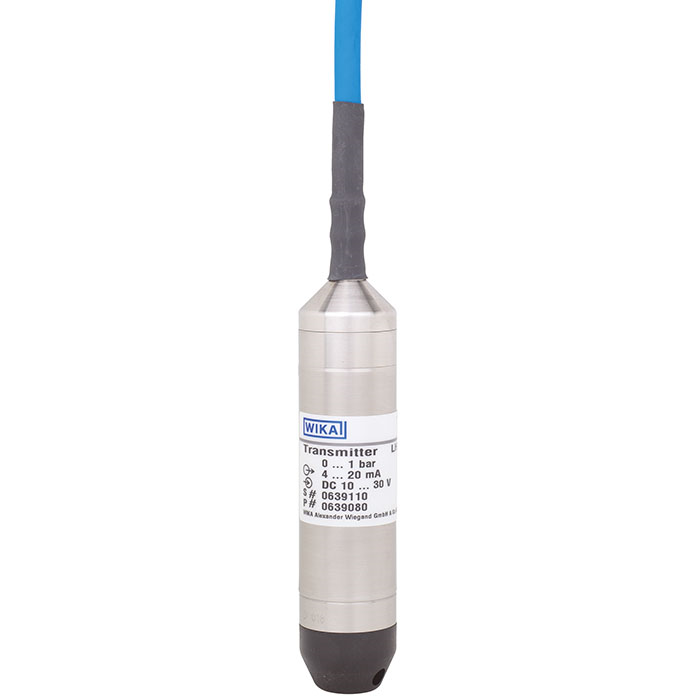

Wika LH-10 Submersible Transducer, 0-150" WC, 4-20mA, 30FT Teflon Cable
Features:
- Level Probe Model LH-10
- High performance version
- Specifications according to data sheet: PE 81.09
- Accuracy: 0.25% of Span (with Pressure Ranges < 250 mbar: 0.5% of Span)
- Permissible medium temperature: -10...+50°C (+14...+122°F) with Teflon cable -10...+85°C (+14...+185°F)
- Ingress Protection: IP 68
- Special Protection: Longitudinal water resistance
- Output signal: 4 ... 20 mA, 2-wire
- Pressure Range: 0/150 InWC
- Process Connection: G 1/4 female
- Special Design Features: Hastelloy (with FEP Cable)
- Cable Length: 30 ft
- Power supply: 10...30 V DC
- pin assignment el. connection: UB=BN, 0V=GN
- Add to shopping cart
Features:
- Level Probe Model LH-10
- High performance version
- Specifications according to data sheet: PE 81.09
- Accuracy: 0.25% of Span (with Pressure Ranges < 250 mbar: 0.5% of Span)
- Permissible medium temperature: -10...+50°C (+14...+122°F) with Teflon cable -10...+85°C (+14...+185°F)
- Ingress Protection: IP 68
- Special Protection: Longitudinal water resistance
- Output signal: 4 ... 20 mA, 2-wire
- Pressure Range: 0/150 InWC
- Process Connection: G 1/4 female
- Special Design Features: Hastelloy (with FEP Cable)
- Cable Length: 30 ft
- Power supply: 10...30 V DC
- pin assignment el. connection: UB=BN, 0V=GN
- Add to shopping cart
Specifications
| Measurement Maximum | 150.0 |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP68 |
