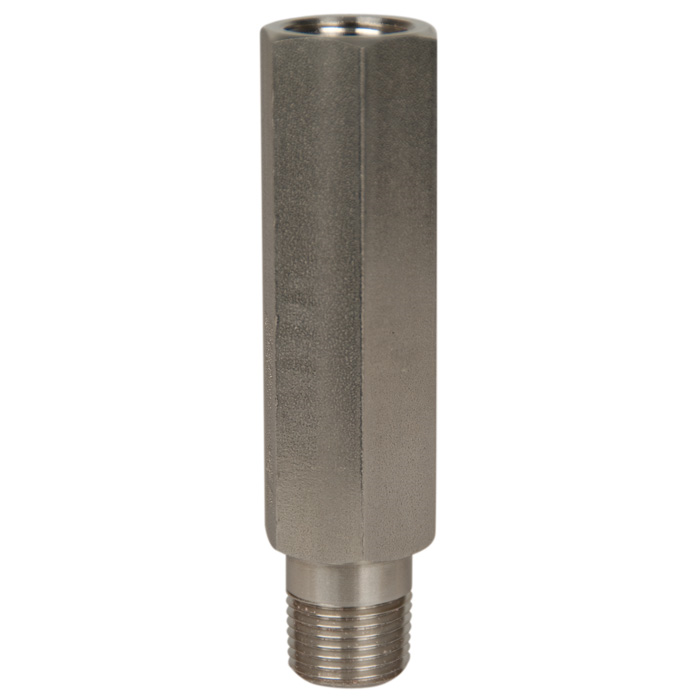

Wika 910.24 Series Mini-Siphon, Stainless Steel, 1/2" NPTM to 1/2" NPTF, 6092 psi, 0.1575" Orifice
The WIKA mini-siphon is designed specifically to replace the old pigtail and coil siphon. The mini-siphon has a thermal barrier which protects the pressure gauge from harmful steam, hot vapors and liquids, and contains a unique inner chamber that reduces pressure surges and “water hammer”. The mini-siphon also eliminates gauge whip and vibration that is typically found on traditional siphons by mounting the gauge closer to the process. When the mini-siphon is first installed, it is recommended to be filled with water or any other suitable separating liquid.
Applications
- Siphon for steam, hot vapors and liquids
- Stainless steel version for corrosive media and corrosive ambient conditions
- Super duplex stainless steel version available for applications requiring high strength and corrosion resistance
- Process industry: mechanical engineering, plant construction, chemical/petro-chemical, power stations, and environmental technology
Features
- 910.24 MINI SIPHON SS 1/2NPTF X 1/2NPTM 3.1 NACE
- 910.24 MINI SIPHON SS 1/2NPT X 1/2NPT 3.1 NACE
- inlet: male thread 1/2NPT
- outlet: female thread 1/2NPT
- material: 1.4571
- Customs TariffNo: 84819000
The WIKA mini-siphon is designed specifically to replace the old pigtail and coil siphon. The mini-siphon has a thermal barrier which protects the pressure gauge from harmful steam, hot vapors and liquids, and contains a unique inner chamber that reduces pressure surges and “water hammer”. The mini-siphon also eliminates gauge whip and vibration that is typically found on traditional siphons by mounting the gauge closer to the process. When the mini-siphon is first installed, it is recommended to be filled with water or any other suitable separating liquid.
Applications
- Siphon for steam, hot vapors and liquids
- Stainless steel version for corrosive media and corrosive ambient conditions
- Super duplex stainless steel version available for applications requiring high strength and corrosion resistance
- Process industry: mechanical engineering, plant construction, chemical/petro-chemical, power stations, and environmental technology
Features
- 910.24 MINI SIPHON SS 1/2NPTF X 1/2NPTM 3.1 NACE
- 910.24 MINI SIPHON SS 1/2NPT X 1/2NPT 3.1 NACE
- inlet: male thread 1/2NPT
- outlet: female thread 1/2NPT
- material: 1.4571
- Customs TariffNo: 84819000
Specifications
| Process Connection Type | NPT-Male |
| Instrument Connection Size | 1/2" |
| Instrument Connection Type | NPT-Female |
| Valve Material | Stainless Steel |
| Pressure Rating | 6092 psi |
| Measurement Minimum | 0 |
