  3. Wika L990.10.N2FXN2F.SS.SS-2.SS.SS.VI.1500, 1/4" x 1/4", Stainless Steel Upper, Lower & Diaphragm, 1/4" Flushing Connection, Viton O-Ring
Public Pricelist (v2)

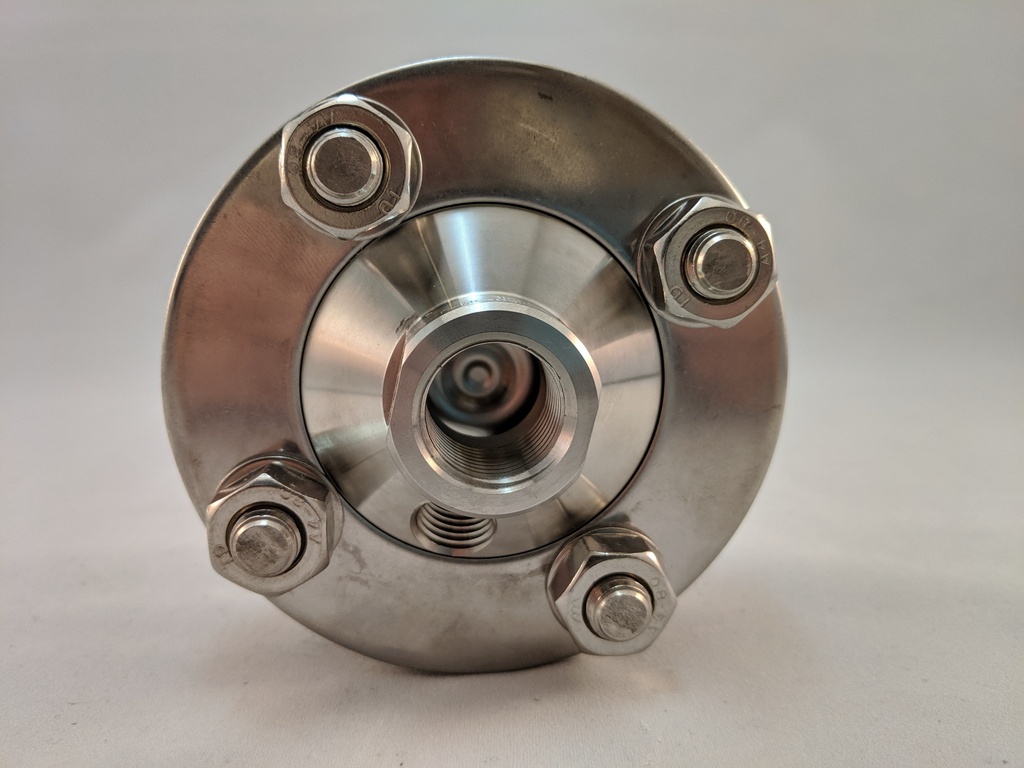

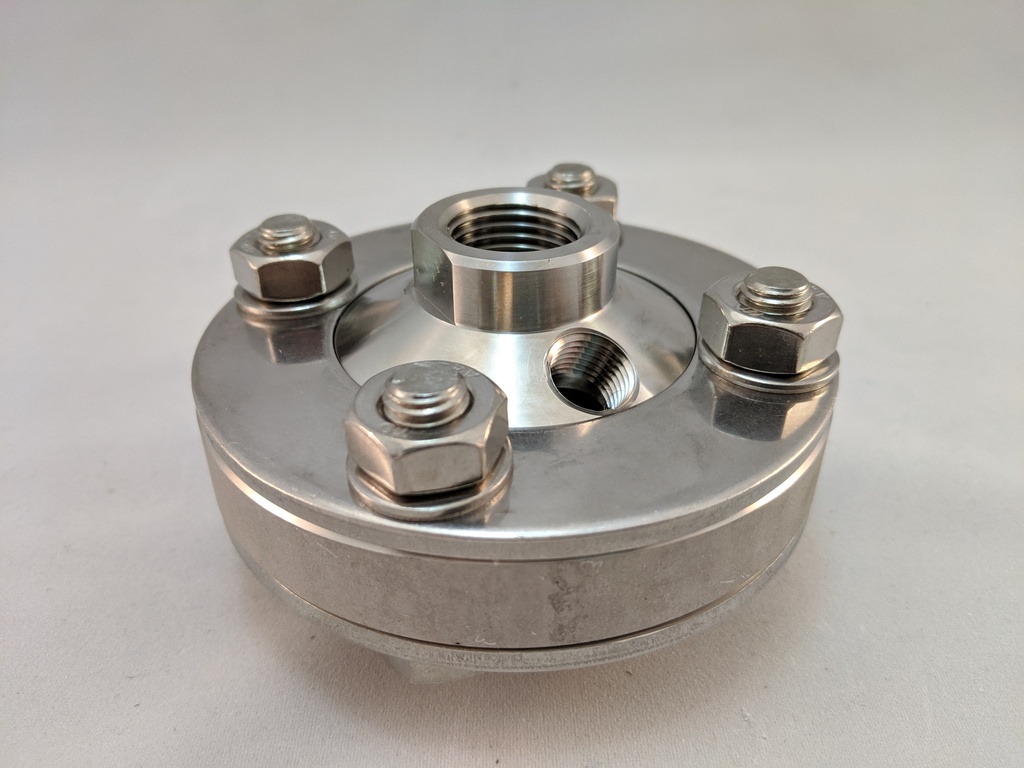

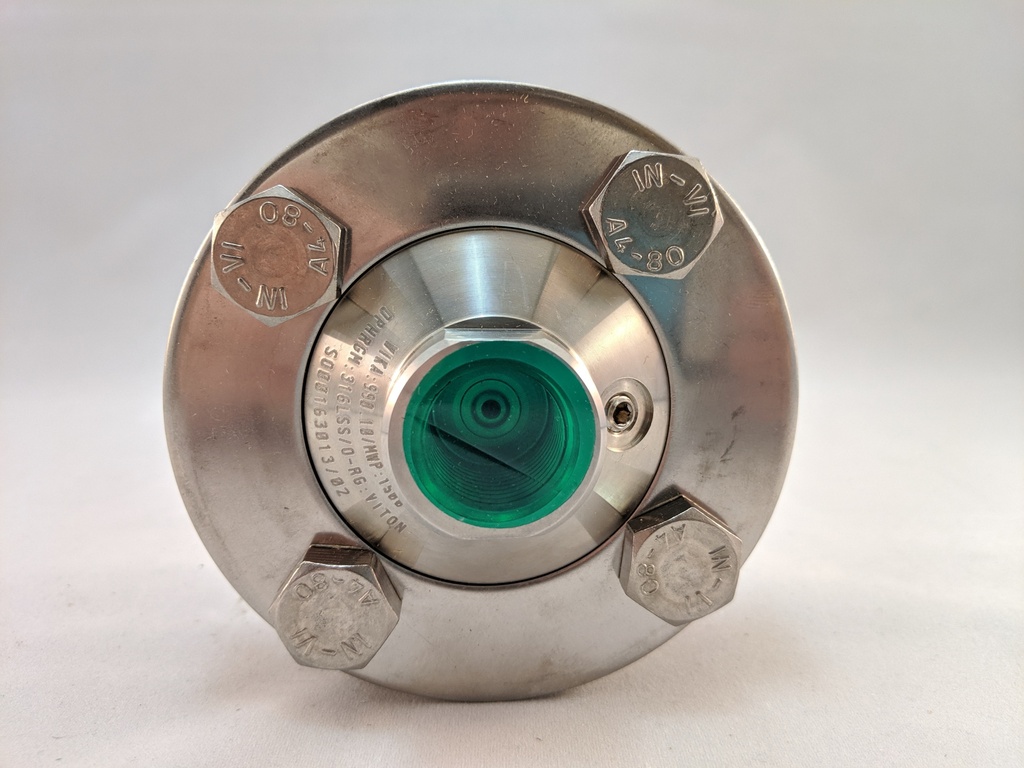

Representative photo. Please check item description for details.

Wika L990.10.N2FXN2F.SS.SS-2.SS.SS.VI.1500, 1/4" x 1/4", Stainless Steel Upper, Lower & Diaphragm, 1/4" Flushing Connection, Viton O-Ring

https://www.branom.com/web/image/product.template/189257/image_1920?unique=f069c2d
(0 review)

Features:

  • 990.10 Threaded design
  • System Fillport: Filler Hole M6 Set Screw
  • Diaphragm seal with threaded process connection
  • Model 990.10 1/4" NPT female 1500 PSI
  • Upper housing material / housing material: Stainless steel 1.4404 (316L); UNS S31603
  • Diaphragm material: Stainless steel 1.4404 (316L); UNS S31603
  • Lower housing material: in (Stainless steel 1.4404 (316L); UNS S31603)
  • Gasket: FPM max. 200°C
  • Fastening parts: Retainer flange and bolts in stainless steel
  • Flushing connection: 1 x 1/4 NPT female

$ 1,053.96 1053.96 USD $ 1,053.96

$ 1,053.96

Not Available For Sale

  • Diaph Seal: Brand

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Features:

  • 990.10 Threaded design
  • System Fillport: Filler Hole M6 Set Screw
  • Diaphragm seal with threaded process connection
  • Model 990.10 1/4" NPT female 1500 PSI
  • Upper housing material / housing material: Stainless steel 1.4404 (316L); UNS S31603
  • Diaphragm material: Stainless steel 1.4404 (316L); UNS S31603
  • Lower housing material: in (Stainless steel 1.4404 (316L); UNS S31603)
  • Gasket: FPM max. 200°C
  • Fastening parts: Retainer flange and bolts in stainless steel
  • Flushing connection: 1 x 1/4 NPT female

Specifications

Diaph Seal: Brand Wika
