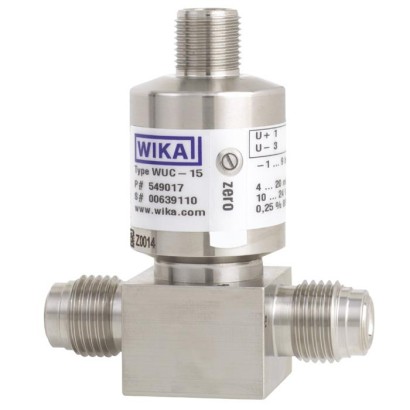

WIKA WUC-15, Compact Pressure Transducer for Ultra High Purity, 0-250psig
Permissible medium temperature: -20 ... +100 °C (-4 ... +212 °F)
Case: 300 Series Stainless Steel
clean room: produced and packed in clean-room class 100
packing: double bagged according to SEMI E49.6
Test protocol: with 6 point test certificte, particle and helium-leak check confirmation
Material of wetted parts: UNS R30003 and 316L stainless steel (according to SEMI F20)
Surface Finish: Ra < 7 µin
Type: process connection: flow through
Output signal: 0 ... 10 V, 3-wire
Pressure range: 0...250 psig
Process Connection: ¼” Swivel Female Face Seal-GR, 9/16-18 UNF, gall resistant
Outlet Process Connection: ¼” Swivel Female Face Seal, 9/16-18 UNF, gall resistant
Electrical Connection: 15 Pin High Density Sub-D Plug (NEMA 5 / IP65)
Approvals: IECEX und ATEX II 3G Ex ec ic IIC und FM Class I Div. 2 Group A,B,C,D
Power supply: 14...30 V DC
pin assignment el. connection: UB=7, 0V=5 bridged to 12, S+=2
Accuracy: 0.2% RSS (non-linearity 0.1% BFSL)
Permissible medium temperature: -20 ... +100 °C (-4 ... +212 °F)
Case: 300 Series Stainless Steel
clean room: produced and packed in clean-room class 100
packing: double bagged according to SEMI E49.6
Test protocol: with 6 point test certificte, particle and helium-leak check confirmation
Material of wetted parts: UNS R30003 and 316L stainless steel (according to SEMI F20)
Surface Finish: Ra < 7 µin
Type: process connection: flow through
Output signal: 0 ... 10 V, 3-wire
Pressure range: 0...250 psig
Process Connection: ¼” Swivel Female Face Seal-GR, 9/16-18 UNF, gall resistant
Outlet Process Connection: ¼” Swivel Female Face Seal, 9/16-18 UNF, gall resistant
Electrical Connection: 15 Pin High Density Sub-D Plug (NEMA 5 / IP65)
Approvals: IECEX und ATEX II 3G Ex ec ic IIC und FM Class I Div. 2 Group A,B,C,D
Power supply: 14...30 V DC
pin assignment el. connection: UB=7, 0V=5 bridged to 12, S+=2
Accuracy: 0.2% RSS (non-linearity 0.1% BFSL)
