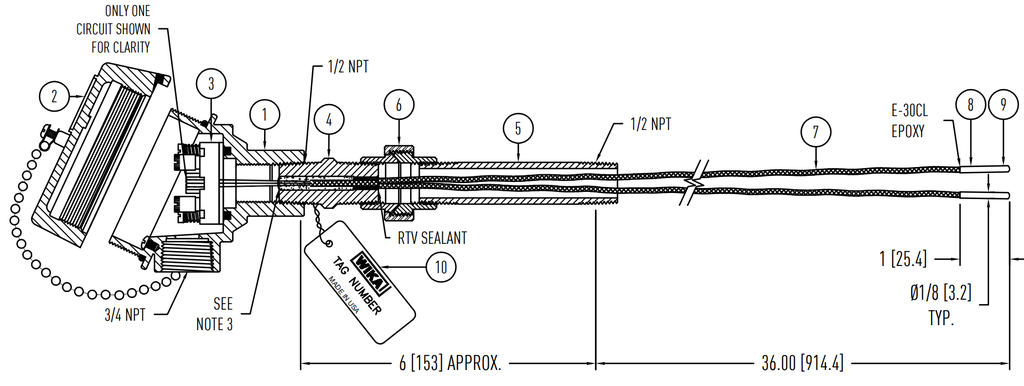

Representative photo. Please check item description for details.
Wika TR10 Series RTD, Dual 3-Wire, 1/8" OD, Aluminum Head
Features:
- TR10 Industrial RTD Assembly
- RTD assembly description : Industrial assembly configured
- Unit of measure: Metric (mm)
- Insert design: Spring loaded plate (removable insert)
- Connection head: KN4-A (Aluminium)
- Cable entry: 1/2 NPT
- Head instrument connection: 1/2 NPT
- Terminal block/transmitter: Ceramic terminal block
- Neck extension: Nipple
- Neck material: Stainless steel 316 (1.4401)
- Thread size: 1/2 NPT
- N-Dimension: 100 mm (approx. 4.0 inch)
- Measuring element: Pt100, class A (IEC 60751)
- Wiring configuration: Dual 3-Wire
- Temperature range: -100...+450 °C, wire wound
- Tip construction: General purpose
- Sensor diameter: 6.0 mm
- Sheath material: Stainless steel 316 / 316 L (1.4401 / 1.4435)
- A-Dimension: 305 mm
- Sheath construction: MI- Cable
Features:
- TR10 Industrial RTD Assembly
- RTD assembly description : Industrial assembly configured
- Unit of measure: Metric (mm)
- Insert design: Spring loaded plate (removable insert)
- Connection head: KN4-A (Aluminium)
- Cable entry: 1/2 NPT
- Head instrument connection: 1/2 NPT
- Terminal block/transmitter: Ceramic terminal block
- Neck extension: Nipple
- Neck material: Stainless steel 316 (1.4401)
- Thread size: 1/2 NPT
- N-Dimension: 100 mm (approx. 4.0 inch)
- Measuring element: Pt100, class A (IEC 60751)
- Wiring configuration: Dual 3-Wire
- Temperature range: -100...+450 °C, wire wound
- Tip construction: General purpose
- Sensor diameter: 6.0 mm
- Sheath material: Stainless steel 316 / 316 L (1.4401 / 1.4435)
- A-Dimension: 305 mm
- Sheath construction: MI- Cable
Specifications
| RTD: Brand | Wika |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Type | Bushing/Union/Nipple |
| RTD: Output | 100 Ω |
