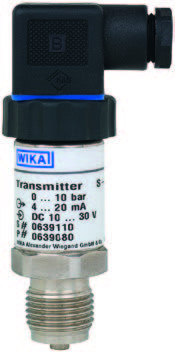

Representative photo. Please check item description for details.
Wika Model S-20 Pressure Transmitter
Features:
- S-20 ; 0...100 psig; 4...20 mA, 2-wire @ DC 8...35 V
- Pressure transmitter Model S-20
- non-linearity: 0.25% BFSL
- Overpressure safety: 3 times
- Process Connection: 1/4 NPT ; Sealing: without
- Electrical connection: angular connector DIN 175301-803 A mating connector included
- pin assignment el. connection: U+=1, U-=2
- permitted media temperature: -30...+100°C
- shock and vibration resistance: 100 g shock, 20 g vibration
- Approvals: cULus
- Test protocol: with test protocol
- Specifications: according to WIKA data sheet PE 81.61
Features:
- S-20 ; 0...100 psig; 4...20 mA, 2-wire @ DC 8...35 V
- Pressure transmitter Model S-20
- non-linearity: 0.25% BFSL
- Overpressure safety: 3 times
- Process Connection: 1/4 NPT ; Sealing: without
- Electrical connection: angular connector DIN 175301-803 A mating connector included
- pin assignment el. connection: U+=1, U-=2
- permitted media temperature: -30...+100°C
- shock and vibration resistance: 100 g shock, 20 g vibration
- Approvals: cULus
- Test protocol: with test protocol
- Specifications: according to WIKA data sheet PE 81.61
Specifications
| Process Connection Type | NPT |
| Process Connection Location | Bottom |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
