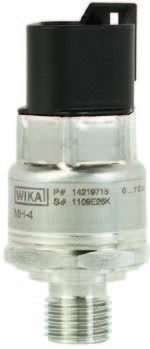

Representative photo. Please check item description for details.
Wika MH-4 OEM Pressure Transducer - Special Pricing for 100+
Features:
- Pressure sensor for mobile working machines Model MH-4
- Measuring range: 0...3000 psi
- accuracy pressure signal: 1.0 % of span (0 … 80 °C)
- Process Connection: G 1/4 A DIN EN ISO 1179-2 (formerly DIN 3852-E) ; Sealing: NBR
- Output signal: 0.5 ... 4.5 V, 3-wire
- Power supply: DC 8...36 V
- Insulation voltage: 500 V DC
- Electrical Connection: connector Deutsch DT04-4P, 4-pin;
- Pin assignment: UB+:2; UB-:1; S+:4
- medium temperature: -40 ...100 °C
- wrench width: 27
- WIKA standard - specification according to data sheet
Features:
- Pressure sensor for mobile working machines Model MH-4
- Measuring range: 0...3000 psi
- accuracy pressure signal: 1.0 % of span (0 … 80 °C)
- Process Connection: G 1/4 A DIN EN ISO 1179-2 (formerly DIN 3852-E) ; Sealing: NBR
- Output signal: 0.5 ... 4.5 V, 3-wire
- Power supply: DC 8...36 V
- Insulation voltage: 500 V DC
- Electrical Connection: connector Deutsch DT04-4P, 4-pin;
- Pin assignment: UB+:2; UB-:1; S+:4
- medium temperature: -40 ...100 °C
- wrench width: 27
- WIKA standard - specification according to data sheet
Specifications
| Measurement Maximum | 0 |
| Process Connection Size | G 1/4 |
| Process Connection Location | Bottom |
| Measurement Minimum | 0 |
| Output Communication Protocol | 0-5 VDC, 3-wire |
