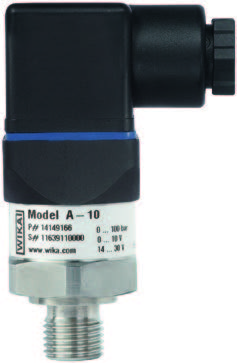

Representative photo. Please check item description for details.
Wika A-10 TRANSMITTER, 0...100 PSIG; 1/4 NPT; 4-20mA, 5M Cable, NIST Cert
Features:
- Pressure transmitter Model A-10
- for general applications
- Specifications according to data sheet: PE 81.60
- Material of Wetted Parts: 316L
- Case: 316L
- non-linearity: 0.5% BFSL
- Unit: psi
- Pressure type: gauge
- Pressure range: 0...150 psig
- Process Connection: 1/4 NPT
- Temperature range of medium: 0...+80 °C
- Output signal: 4 ... 20 mA, 2-wire
- Power supply: 8...30 V DC
- Electrical Connection: valve connector, size A with cable
- Cable Length: 5 m
- Approvals: cULus
- NIST Calibration Certificate
Features:
- Pressure transmitter Model A-10
- for general applications
- Specifications according to data sheet: PE 81.60
- Material of Wetted Parts: 316L
- Case: 316L
- non-linearity: 0.5% BFSL
- Unit: psi
- Pressure type: gauge
- Pressure range: 0...150 psig
- Process Connection: 1/4 NPT
- Temperature range of medium: 0...+80 °C
- Output signal: 4 ... 20 mA, 2-wire
- Power supply: 8...30 V DC
- Electrical Connection: valve connector, size A with cable
- Cable Length: 5 m
- Approvals: cULus
- NIST Calibration Certificate
Specifications
| Measurement Maximum | 100.0 |
| Process Connection Type | NPT-Male |
| Process Connection Location | Bottom |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mADC |
