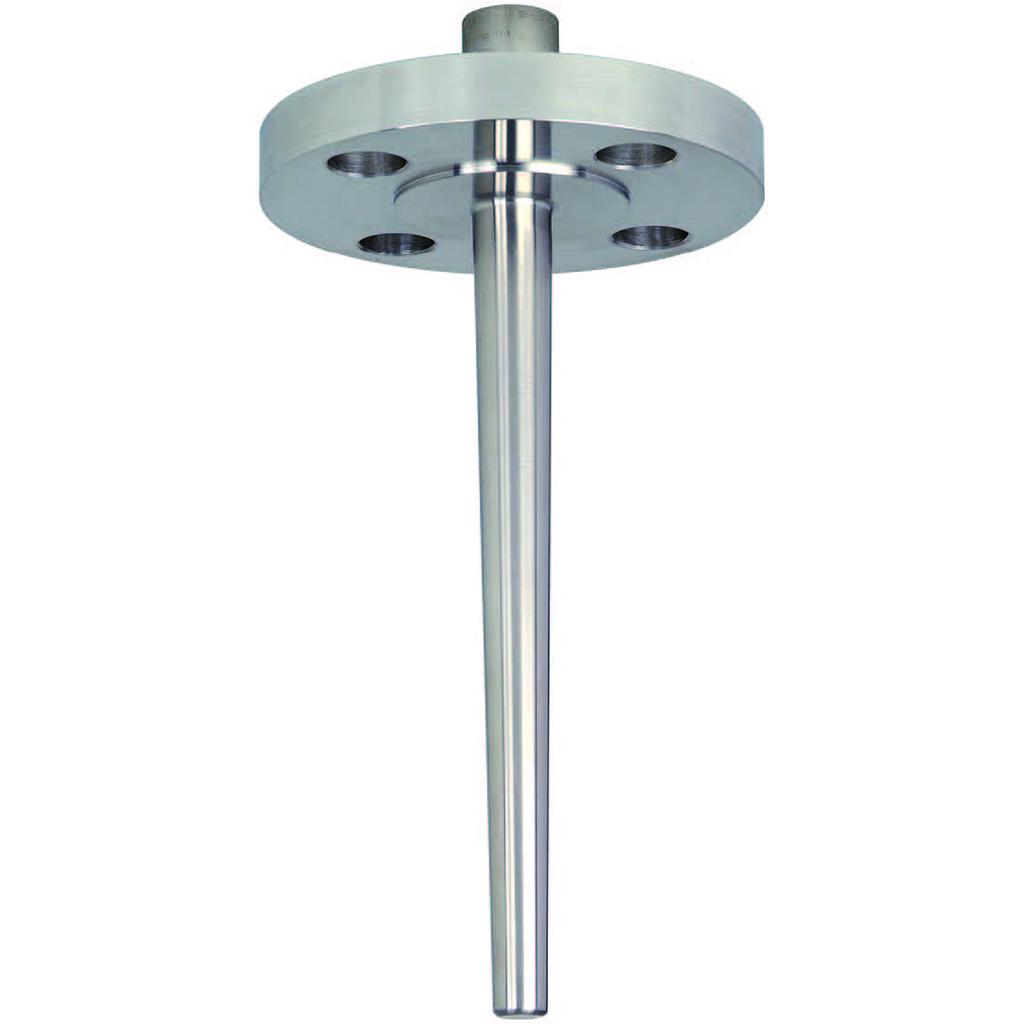

Representative photo. Please check item description for details.
Wika TW10-F FPW 2" 150LB FLANGED, 1/2" NPT female CONNECTION TO THERMOMETER, U=30" INSERTION
Features:
- TW10-F FPW 1/2 NPT female
- U=30.000 inch B=0.260 inch
- (6.6 mm) SS316/316L
- Flange: 2 inch 150 lbs RF
- Connection to thermometer [N]:
- 1/2 NPT female
- Material: INCONEL 625
- Flange material: INCONEL 625
- Thermowell style: Tapered
- Head length [H]: 2.25 inch
- Insertion length [U]: 30.000
- inch
- Bar diameter [Bd or F2]: 1.125
- inch (28.6 mm)
- Root diameter [Q]: 1.063 inch
- Tip diameter [V or F3]: 0.750
- inch
- Bore size [B or d1]: 0.260 inc
- Bore depth / stem length (US)
- [A]: 32.000 inch
Features:
- TW10-F FPW 1/2 NPT female
- U=30.000 inch B=0.260 inch
- (6.6 mm) SS316/316L
- Flange: 2 inch 150 lbs RF
- Connection to thermometer [N]:
- 1/2 NPT female
- Material: INCONEL 625
- Flange material: INCONEL 625
- Thermowell style: Tapered
- Head length [H]: 2.25 inch
- Insertion length [U]: 30.000
- inch
- Bar diameter [Bd or F2]: 1.125
- inch (28.6 mm)
- Root diameter [Q]: 1.063 inch
- Tip diameter [V or F3]: 0.750
- inch
- Bore size [B or d1]: 0.260 inc
- Bore depth / stem length (US)
- [A]: 32.000 inch
Specifications
| Thermowells: Brand | - |
| Thermowells: Process Conn. Size | - |
| Thermowells: Instrument Conn. Size | - |
| Thermowells: Body Material | - |
| Thermowells: Pressure Rating | - |
| Thermowells: Style | - |
| Thermowells: Max Shank Diameter | - |
| Thermowells: Media | - |
| Thermowells: Stem Length | - |
| Thermowells: Bore Size | - |
