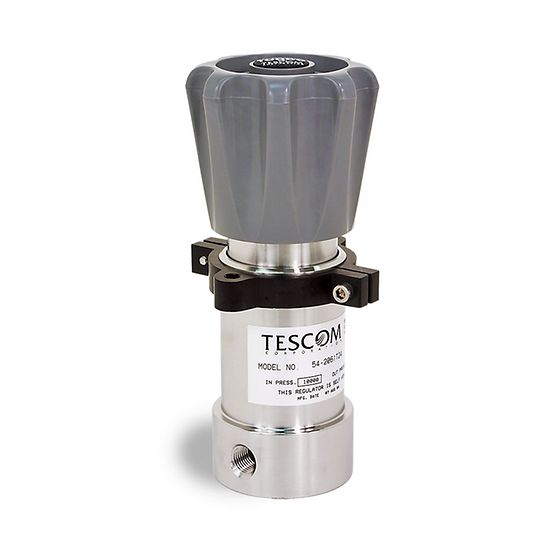

TESCOM™ 54-2000 Series Pressure Regulator Hydraulic
Maximum Inlet Pressure10,000 psig / 690 bar
Outlet Pressure Ranges 5-500, 5-800, 10-1500, 15-2500, 25-4000, 50-6000, 200-10,000 psig
0.35-34.5, 0.35-55.2, 0.69-103, 1.0-172, 1.7-276, 3.4-414, 13.8-690 bar
MaterialBody: 316 Stainless Steel
Main Valve, Vent Seat, Poppets: 17-4 Stainless Steel
O-Rings: Viton-A®, Buna-N, Ethylene Propylene, Kalrez®
Back-up Rings: PTFE
Remaining Parts300 Series Stainless Steel and 17-4 Stainless Steel
Ambient Operating Temperature2-15°F to 165°F / -26°C to 74°C
2 For extended temperatures from -40°F to 400°F / -40°C to 204°C, consult TESCOM.
Port Size & Type1/4, 3/8, 1/2
SAE, NPTF, MS33649, High Pressure, Medium Pressure
External Vent Port (1/4): SAE, NPTF, MS33649
Flow CapacityMain Valve: Cv = 0.06
Vent Valve: Cv = 0.08
