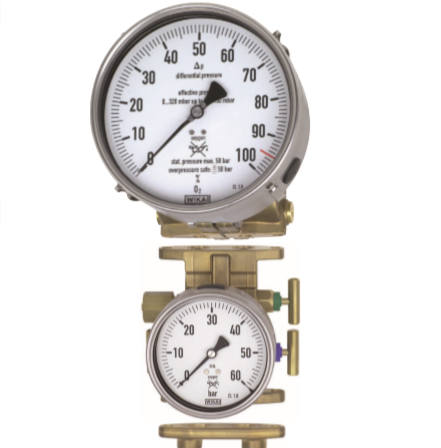

Representative photo. Please check item description for details.
Wika Model: 712.15.160 D/P Cryo Gauge, copper alloy, NS 160
Features:
- 712.15.160-CF2ZZZ4-1NZZZZZ-ZZZ-ZZZZZ-EZZZZZ ZZZ11ZII
- Model: 712.15.160
- Specifications according to data sheet: PM 07.30
- Special design features: Oxygen, Oil and Grease Free
- measuring cell material: copper alloy CW614N (CuZn39Pb3)
- Nominal size: 160
- measuring cell, adjustable measuring ranges: 1130 mbar; 0...320 mbar to 0...1130 mbar
- scale: single scale
- Unit, 1st scale version: 0...100 % pressure, set to medium measuring range
- Accuracy Class: class 2.5
- Process Connection: 2 X G1/4 female, center distance 37 mm
- Window: Polycarbonate
- Ingress Protection: IP 65
- Restrictor: stainless steel screwed D 0,6
- Manufacturer logo: *WIKA*
- serial number on dial: Serial number *...*
Features:
- 712.15.160-CF2ZZZ4-1NZZZZZ-ZZZ-ZZZZZ-EZZZZZ ZZZ11ZII
- Model: 712.15.160
- Specifications according to data sheet: PM 07.30
- Special design features: Oxygen, Oil and Grease Free
- measuring cell material: copper alloy CW614N (CuZn39Pb3)
- Nominal size: 160
- measuring cell, adjustable measuring ranges: 1130 mbar; 0...320 mbar to 0...1130 mbar
- scale: single scale
- Unit, 1st scale version: 0...100 % pressure, set to medium measuring range
- Accuracy Class: class 2.5
- Process Connection: 2 X G1/4 female, center distance 37 mm
- Window: Polycarbonate
- Ingress Protection: IP 65
- Restrictor: stainless steel screwed D 0,6
- Manufacturer logo: *WIKA*
- serial number on dial: Serial number *...*
Specifications
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Process Connection Location | Center Back Mount |
| Gauge: Ingress Protection | IP 65 |
| Gauge: Dial Size | 4 in (100 mm) |
