Description
Applications
- Oil and gas industry, chemical and petrochemical industries, power plants, shipbuilding
- For gaseous and liquid aggressive media that are highly viscous or crystallising, also in aggressive environments
- Test benches and calibration equipment
- Control panels (e. g. wellheads, actuators), lubrication systems, dry gas seal systems
- Sampling systems for process analysis
Special features
- Increased safety with metal enclosed valve seats and double valve body seal
- High-quality machining guarantees smooth operation with low torque and low wear
- Leak-tested tightness in accordance with BS 6755 / ISO 5208 leakage rate A
- Customisable arrangement with ball and needle valves
- Customer-specific combination of valves and instruments (hook-up) on request
Features

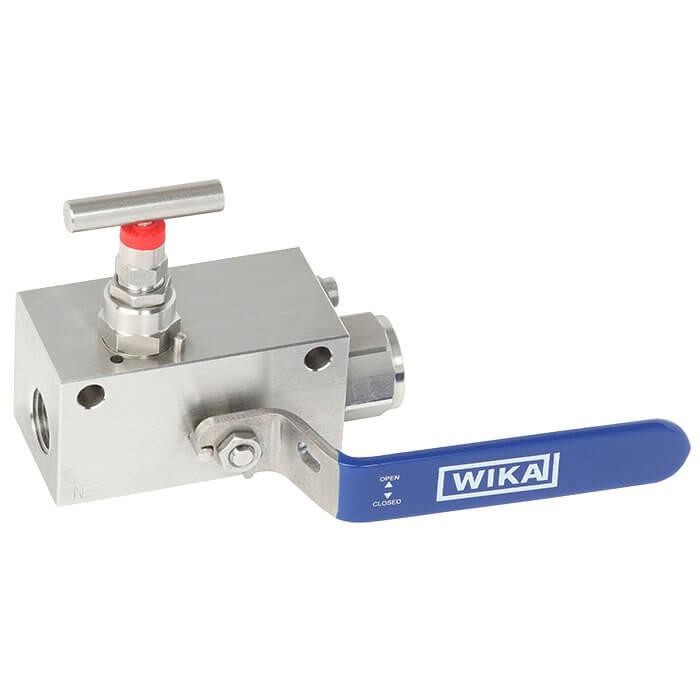

- IBM2 BB B/N TH/TH 1/2 NPT M/F 6000 PSI - 420 bar 316/316L
- Function: Block &
- Bleed
- Design type: Threaded/Threaded
- Version: Ball-Needle
- Connection size and type: 1/2" NPT male/female
- Pressure rating: 6000 PSI - 420 bar
- Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- Material packing: PEEK Ball seats - GRAPHITE Needle packing
- Vent connection: 1/2" NPT female with plug
- Mounting: with bracket holes
- Certificates/Approvals: NACE MR0175 Sour Gas Service &
- Inspection certificate 3.1, EN 10204, all wetted parts material
- Internal Bore: 10mm
