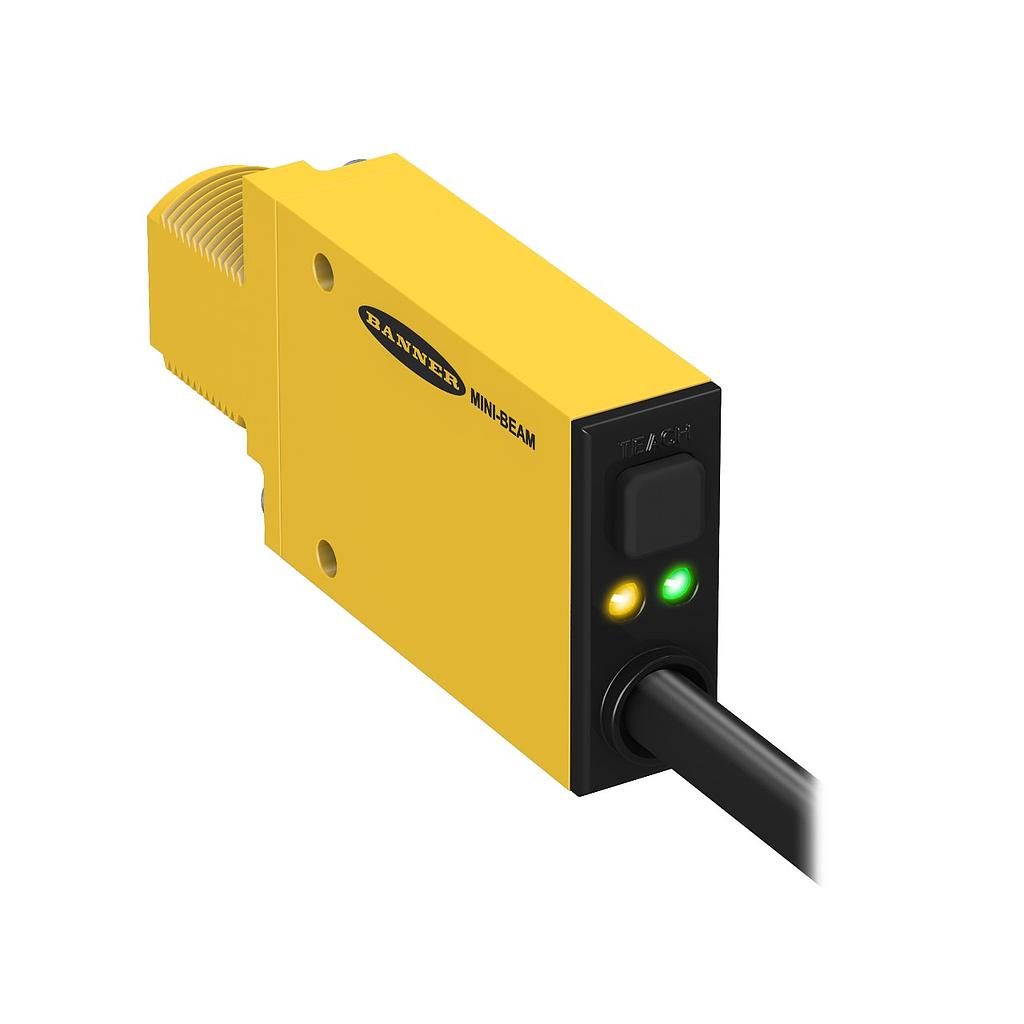

12 IN PIGTAIL 3-PIN MINI-CON-X MALE, SME312DQDP-68912
Brand:Banner
Manufacturer Product Family:MINI-BEAM EXPERT
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:1000 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):100
Sensing Beam:Infrared LED
Housing Style:Rectangular w/M18 Mount
Max Sensing Distance:380 mm
Sensing Mode (Detailed):Diffuse
Sensing Mode (General):Proximity
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:7/8 in. (Mini)
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:3
Output Response Time:0.5 ms
Operation:Light/Dark Operate
Adjustments:Teach Button
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Barrel Diameter:18
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection:Other
Country of Origin:US
NEMA / UL:NEMA 1/2/3/3S/4/4X/6/12/13, NEMA 1/2/3/3S/4/4X/6/12/13
Indicator Type:LED
Specifications
| Brand | Banner |
| Manufacturer Product Family | MINI-BEAM EXPERT |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 1000 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 100 |
| Sensing Beam | Infrared LED |
| Housing Style | Rectangular w/M18 Mount |
| Max Sensing Distance | 380 mm |
| Sensing Mode (Detailed) | Diffuse |
| Sensing Mode (General) | Proximity |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | 7/8 in. (Mini) |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 3 |
| Output Response Time | 0.5 ms |
| Operation | Light/Dark Operate |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | No |
| Barrel Diameter | 18 |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection | Other |
| Country of Origin | US |
| NEMA / UL | NEMA 1/2/3/3S/4/4X/6/12/13, NEMA 1/2/3/3S/4/4X/6/12/13 |
| Indicator Type | LED |
