Description

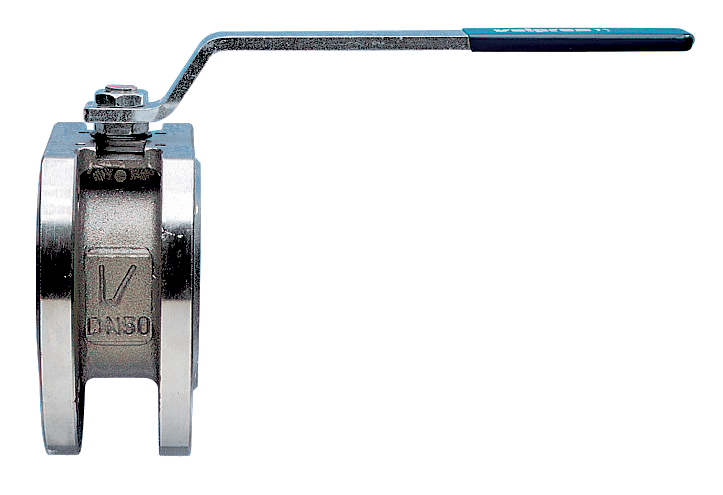

720016 Wafer Series stainless steel ANSI class 150 flanged ball valve, full port.
Features
- Temperature range -4°F to 366°F.
- Blow-out proof stem.
- RPTFE seats, packing and thrust washer.
- Space saving design.
- 100% tested.
- TUV T.A. Luft approved.
- ANSI B16.34 design.
- ISO 5211 mounting pad with double “D” stem.
- Locking handles available.
Specifications
| Valve Size | 1/2", 1-1/4", 1-1/2", 2-1/2", 5", 6" |
