Description
Features:

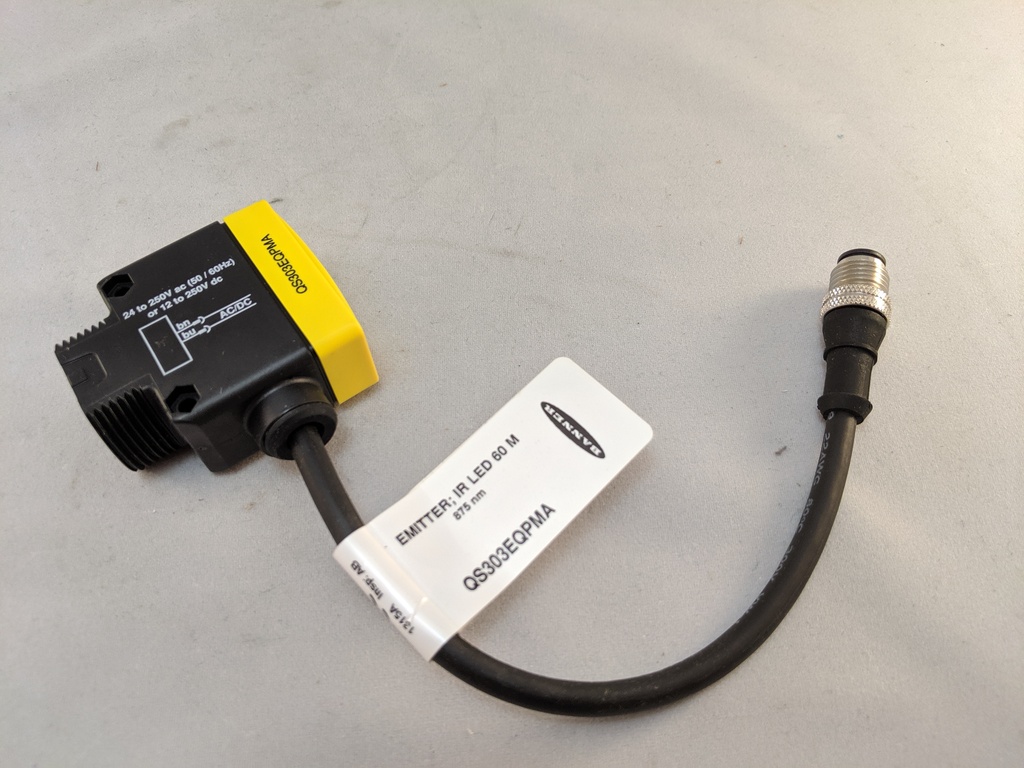

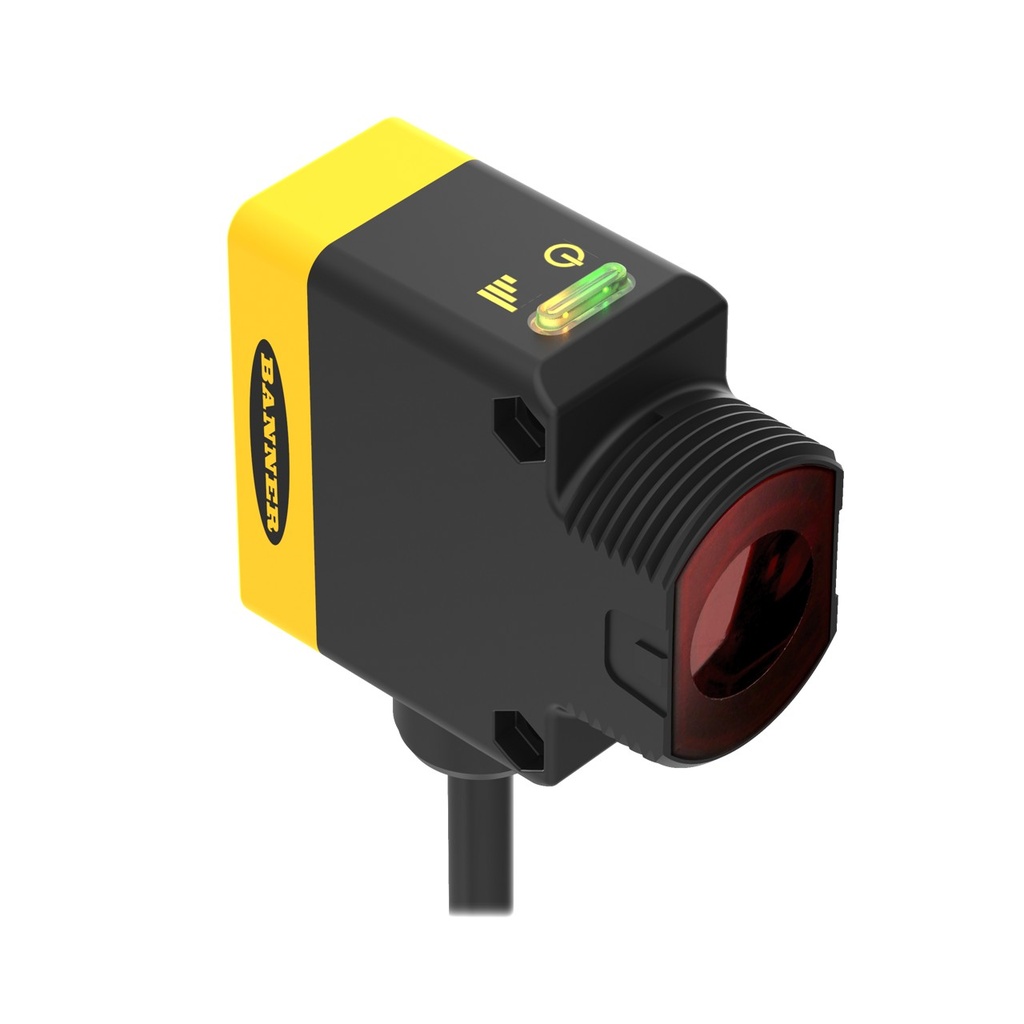

- WORLD-BEAM QS30 Series: Universal Voltage
- E
- Range: 60m
- Input: 12-250V dc or 24-250V ac
- Output: No output

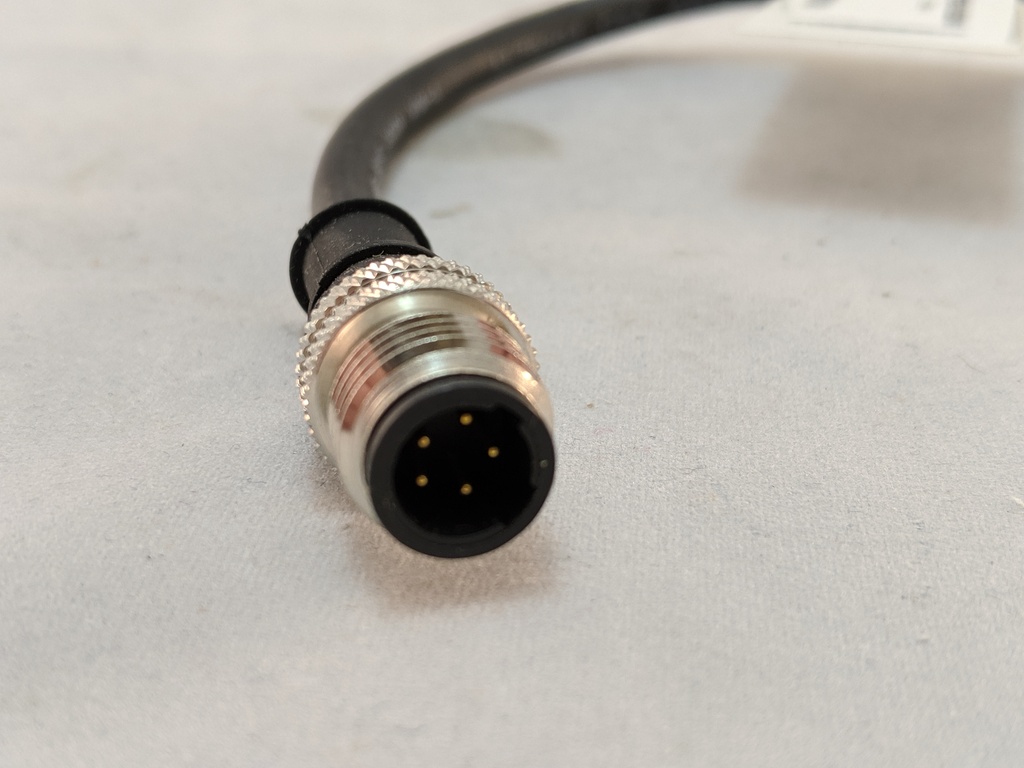

- 6 in (150 mm) PUR pigtail 5 pin Micro-style QD
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 70 °C

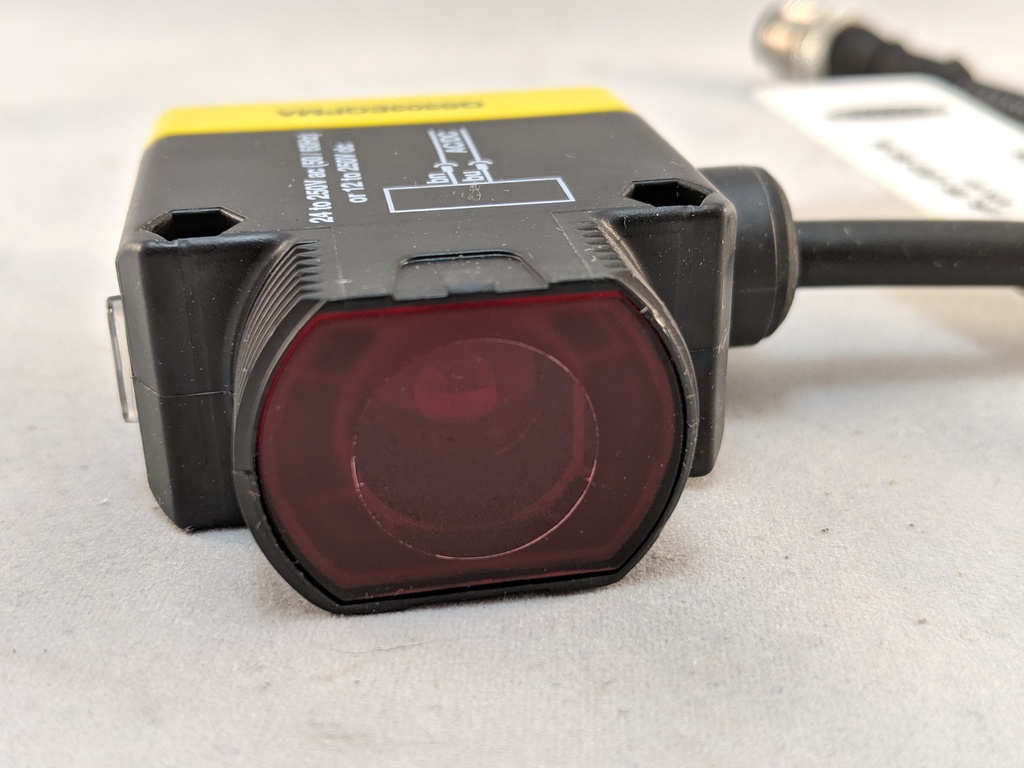

- Lens Material: Acrylic
- Power Supply: 12-250 VDC or 24-250 VAC
- Delay at Power-Up: 100 ms
- Ingress Protection: IP67
- Sensing Beam: Infrared LED
- Housing Style: Rectangular w/M30 Mount
- Max Sensing Distance: 60000 mm
- Sensing Mode (Detailed): Emitter
- Sensing Mode (General): Opposed
- Max Relative Humidity: 95% @ 50 °C
- Housing Material_: Thermoplastic
- Feature: Hazardous Area: No
- DeviceNet: No
- Feature: IO Link: No
- Feature: Quick Disconnect: Yes
- Feature: Audible: No
- Quick Disconnect Type: 1/2 in. (Micro)
- Feature: Chemical Resistant: No
- Opposed Mode Emitter/Receiver: Emitter
- Feature: Water Detection: No
- Number of Pins: 5
- Output Response Time: 15 ms
- Adjustments: N/A
- Feature: Timing (Hold/Delay): No
- Feature: Encapsulated: No
- Barrel Diameter: 30 mm
- Feature: Remote Teach: No
- Feature: Intrinsically Safe: No
- Connection Type: Pigtail PUR QD
- NEMA / UL: NEMA 6
- Cord/Cable Length: 0.15 m
- Indicator Type: LED
