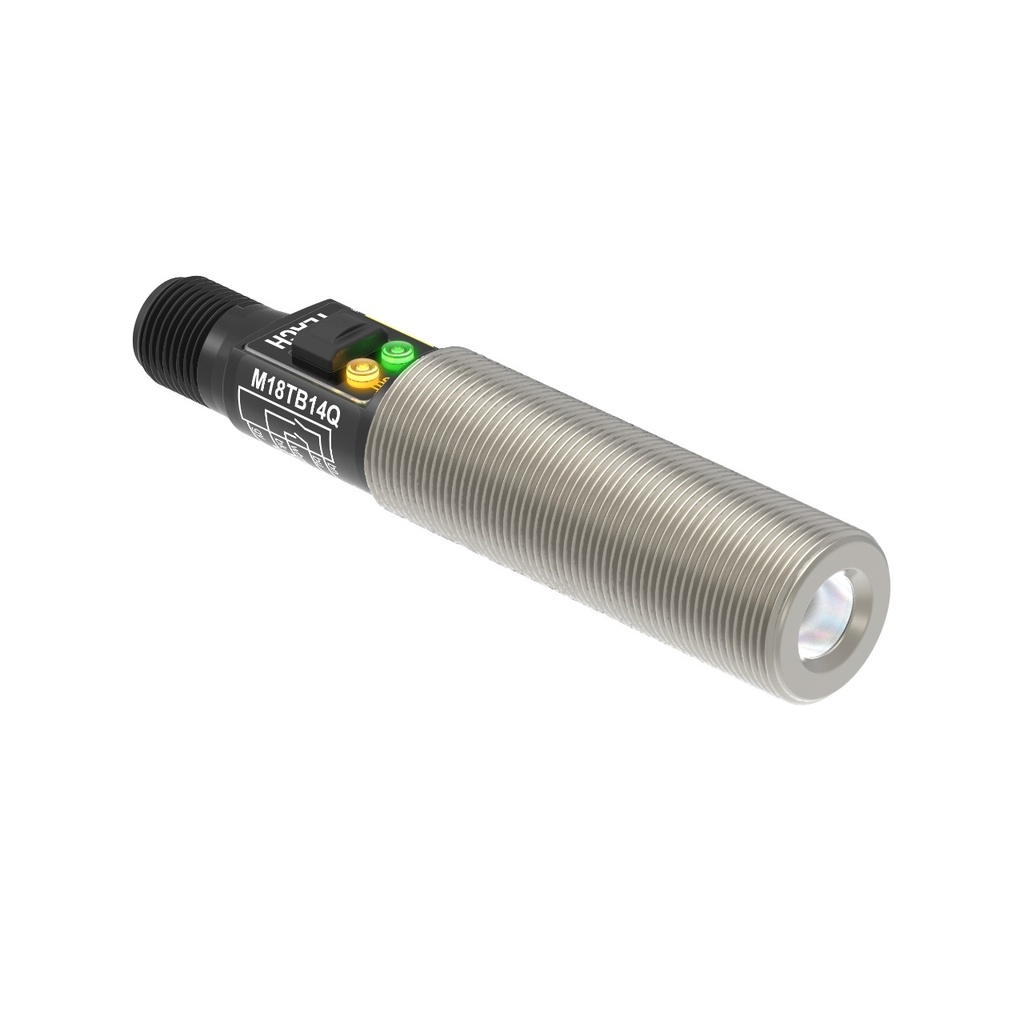

M18T Series: Temperature Sensor (M18TUP6E)

https://www.branom.com/web/image/product.template/37429/image_1920?unique=c1b9893
(0 review)

Features:

  • M18T Series: Temperature Sensor
  • 6:1 Plastic Fresnel Lens
  • Output: Analog 0-10 V
  • PNP Alarm
  • 2 m Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 12-30 VDC
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP67
  • Housing Style: Barrel
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: SS
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Analog Output: 0 to 10 VDC
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -25 to 75 °C
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog
  • Barrel Diameter: 18
  • Min Response Time: 25 ms
  • Analog Resolution/Discrete Repeatability: ± 1% of measurement, or ± 1 °C, whichever is greater
  • Remote Teach and Laser Control Input Impedence: 3 kΩ
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Analog Voltage Output Rating: 2.5 kΩ min. load impedance
  • Connection Type: Flying Leads
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Barrel Thread: M18
  • Feature: Common Ethernet Protocol: No
  • Feature: Pump-In/Pump-Out: No
  • Feature: Health/Marginal Signal Output: Yes
  • Feature: PC Configurable: Yes
  • Indicator Type: LED
  • Warm-Up Time: 5 min
  • Analog Linearity: Greater of ±2 °C (0 to +50 °C) or ±1 °C (+50 to +300 °C) or ±1.0%

$ 562.00 562.0 USD $ 562.00

$ 562.00

Not Available For Sale

    This combination does not exist.
