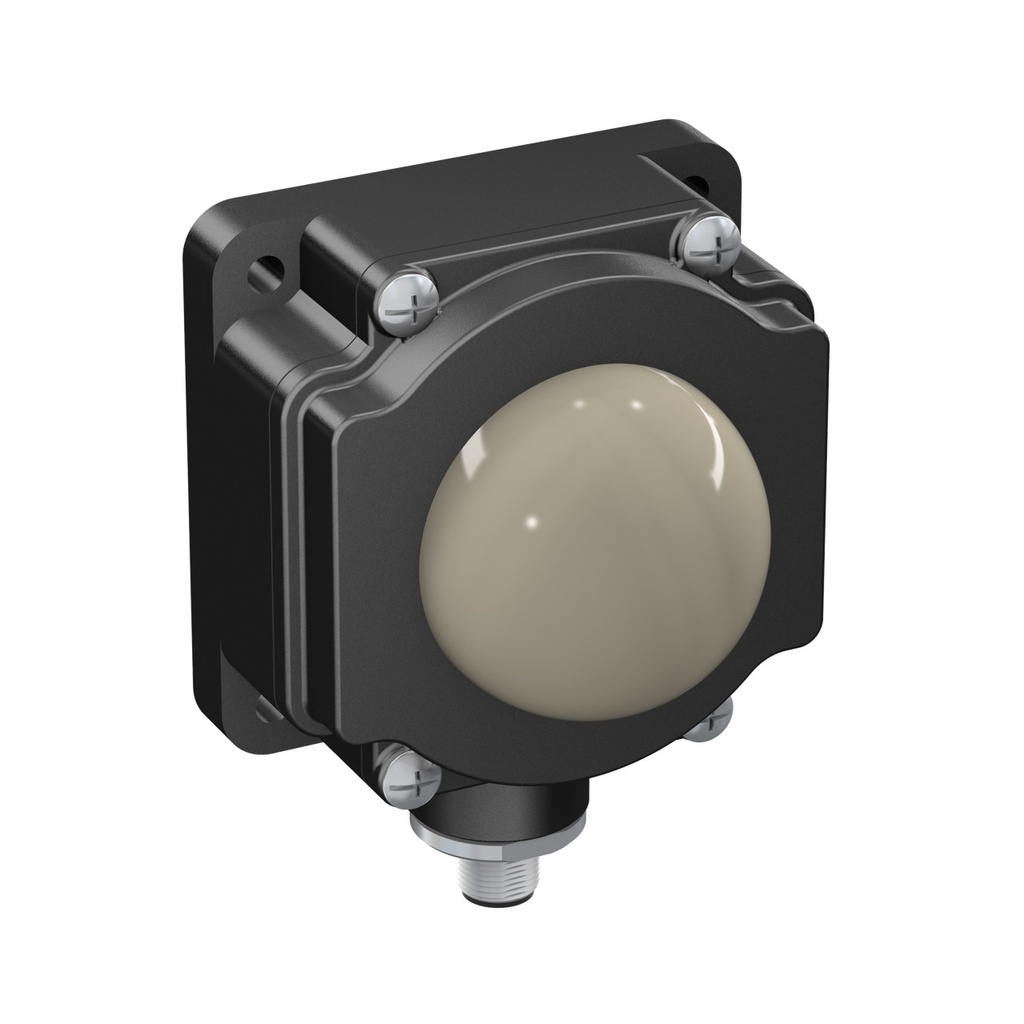

Representative photo. Please check item description for details.

K80 Series EZ-LIGHT: 5-Color Multi-Function Indic (K80LGRYBWPQ8)

https://www.branom.com/web/image/product.template/195499/image_1920?unique=07314b3
(0 review)

Features:

  • K80 Series EZ-LIGHT: 5-Color Multi-Function Indic
  • Voltage: 18-30V dc
  • Housing: Polycarbonate
  • IP67
  • Input: PNP
  • Colors: Green Red Yellow Blue White
  • Euro-style Quick-Disconnect Connector
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 40 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Flat Mount - Dome Window
  • Housing Material_: Polycarbonate
  • Feature: Indication: Yes
  • Color Option 3: Yellow
  • Supply Voltage: 18-30 VDC
  • Color Option 2: Red
  • Feature: Quick Disconnect: Yes
  • Animation Option 3: Multiple
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Green
  • Animation Option 2: Multiple
  • Housing Color: Yellow
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On - Alternating
  • Animation Option 1: Multiple
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 5
  • Number of Input Pins/Conductors: 5
  • Input Type: PNP
  • Mounting Thread: No Thread
  • Max Input Response Time (ms): 10 ms
  • Color Option 4: Blue
  • Color Option 5: White
  • Wire Selectable Function: Multi-Function
  • Connection Type: Integral QD

$ 209.00 209.0 USD $ 209.00

$ 209.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
