Description
Features:

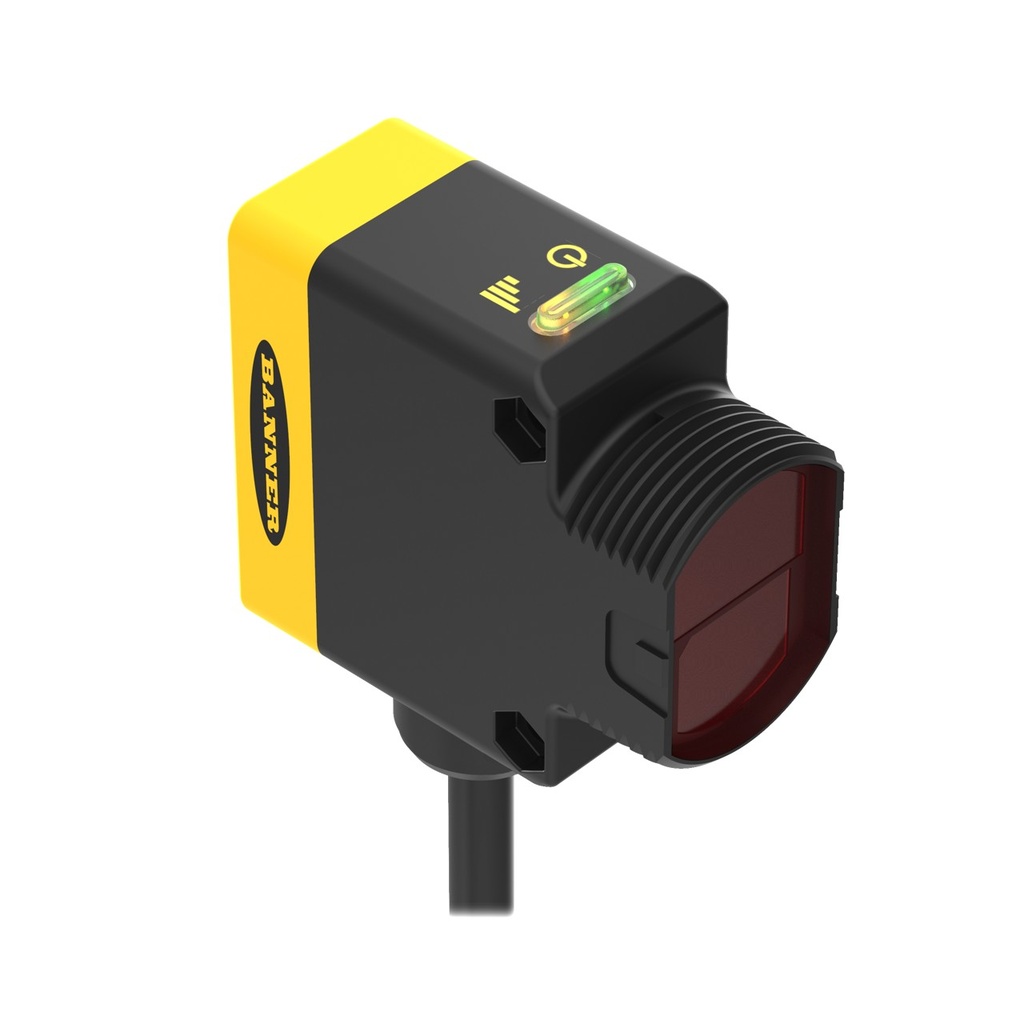

- WORLD-BEAM QS30 Series: Universal Voltage
- Range: 8 m
- Input: 12-250 V dc or 24-250 V ac
- Output: SPDT e/m Relay
- 9 m (30 ft) Cable
- Bulk packed with hardware
- no lit
- no individual boxes
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 70 °C
- Lens Material: Acrylic
- Power Supply: 12-250 VDC or 24-250 VAC
- Delay at Power-Up: 100 ms
- Ingress Protection: IP67
- Sensing Beam: Visible Red LED
- Sensing Beam Wavelength: 630
- Housing Style: Rectangular w/M30 Mount
- Max Sensing Distance: 8000 mm
- Sensing Mode (Detailed): Polarized
- Sensing Mode (General): Retroreflective
- Max Relative Humidity: 95% @ 50 °C
- Housing Material_: Thermoplastic
- Feature: Hazardous Area: No
- DeviceNet: No
- Feature: IO Link: No
- Feature: Quick Disconnect: No
- Feature: Audible: No
- Feature: Chemical Resistant: No
- Feature: Water Detection: No
- Number of Pins: 5
- Output Response Time: 15 ms
- Operation: Light/Dark Operate
- Adjustments: N/A
- Feature: Timing (Hold/Delay): No
- Feature: Encapsulated: No
- Input/Output: E/M Relay
- Barrel Diameter: 30 mm
- Feature: Remote Teach: No
- Feature: Intrinsically Safe: No
- Connection Type: Cable
- NEMA / UL: NEMA 6
- Cord/Cable Length: 9 m
- Indicator Type: LED
