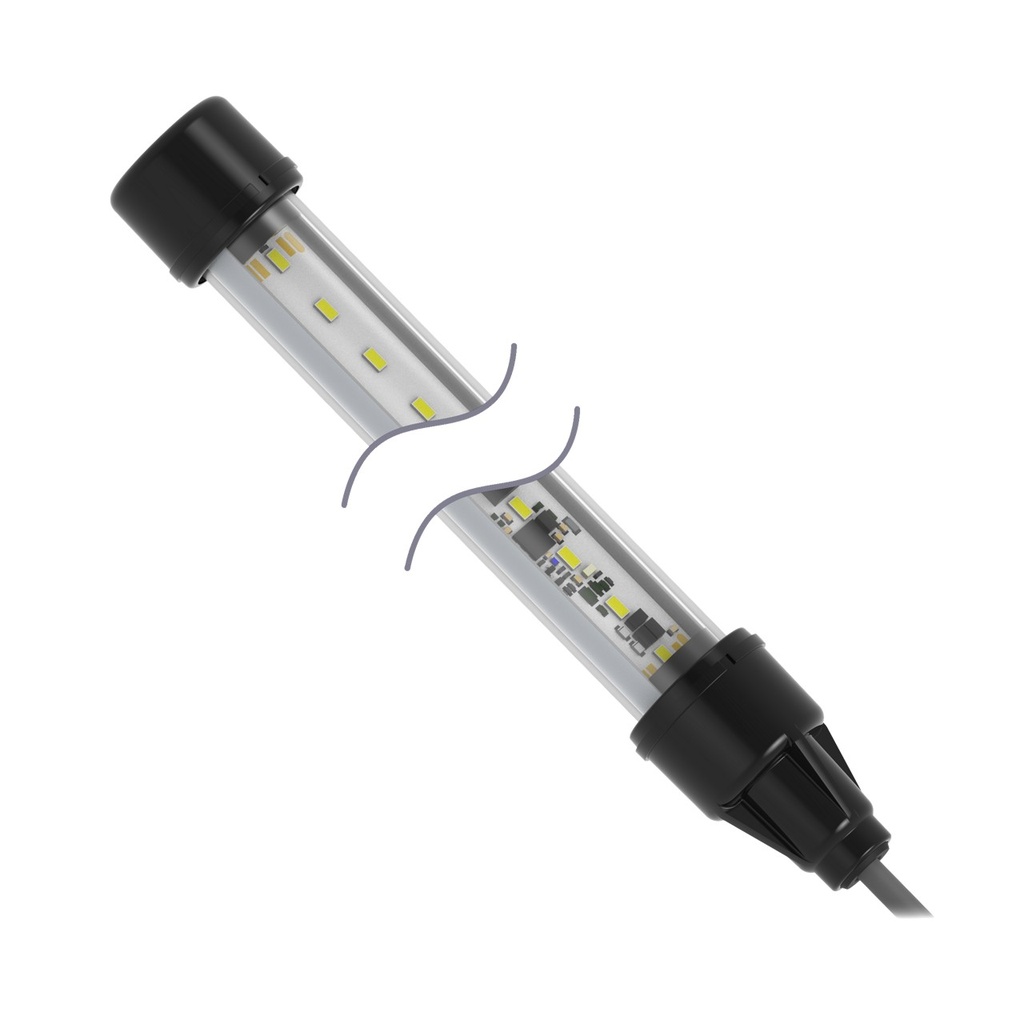

Hls27 Hazardous Location Dual Color Light Strip (HLS27DGR0145CQP)
Features:
- HLS27 Hazardous Location Dual Color Light Strip; Length: 145 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; Colors: Green (100 percent), Red (100 percent); 150mm ITC-ER cable with 4-pin male 7/8 Minifast
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 400 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 60 °C
- Power Source: VDC
- Ingress Protection: IP66/67
- Housing Style: Linear Strip
- Max Relative Humidity: 90% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Hazardous Area: Yes
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 38.1 x 229.0 mm
- Feature: Wireless: No
- Supply Voltage: 12-30 VDC
- Color Option 2: Red
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 175
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Green
- Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Quick Disconnect Type: 7/8 in. (Mini)
- Number of Colors / Segments: 2
- Lumens Color 2: 65
- Product Size (mm): 27 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 625 nm
- Number of Input Pins/Conductors: 4
- Max Op. Relative NC Humidity: 90% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: No Thread
- Feature: Chemical Resistant: Yes
- Storage Temp: -40 to 70 °C
- Illuminated Length (LxWxH): 141.0 mm
- Feature: Illumination: Yes
- Connection Type: Pigtail QD
- Cord/Cable Length: 0.15 m
