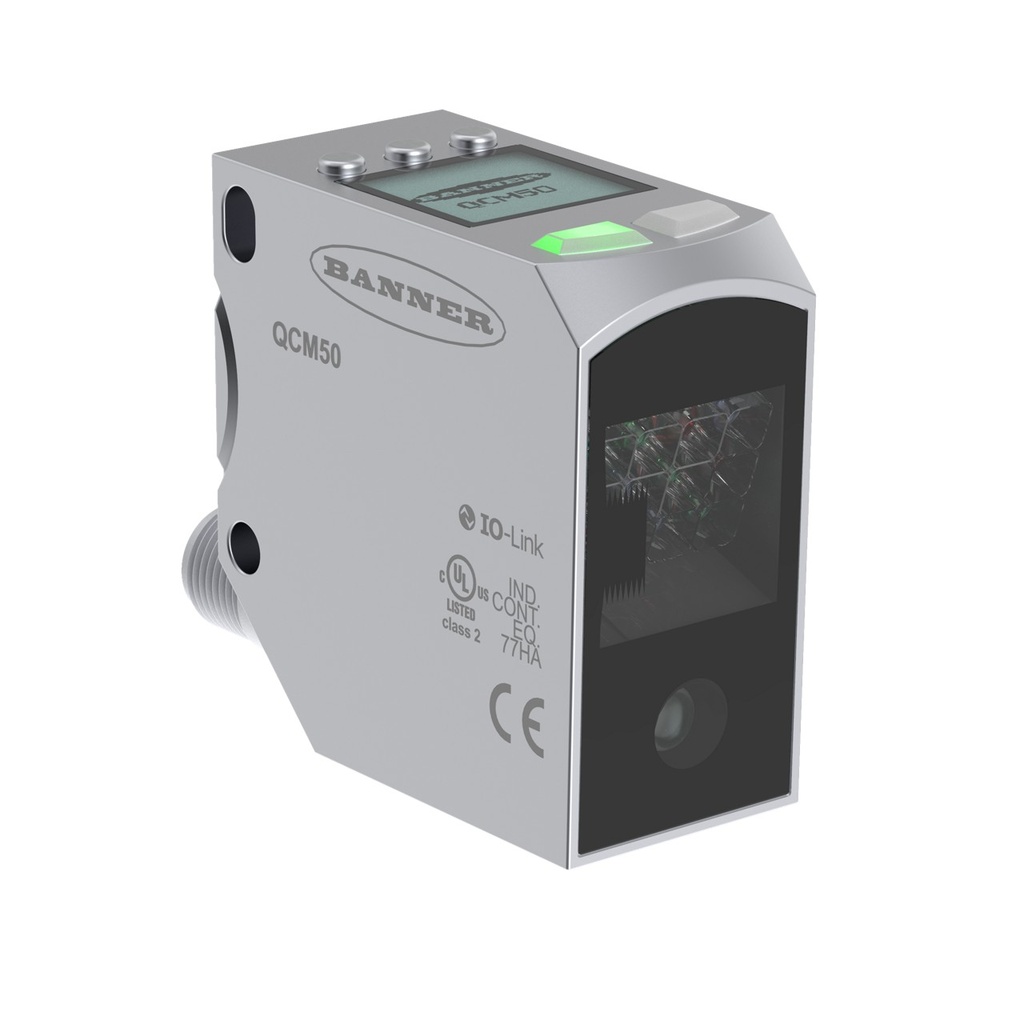

Qcm50 Series: Color Sensor (QCM50-K5D40-Q8-8)
Representative photo. Please check item description for details.

Qcm50 Series: Color Sensor (QCM50-K5D40-Q8-8)

https://www.branom.com/web/image/product.template/204217/image_1920?unique=7548f7f
(0 review)

Features:

    QCM50 Series: Color Sensor; Range: 18-60 mm; Input: 10-30 V dc; Outputs: 5 Discrete PNP/NPN; IO-Link; Integral Euro-Style M12 8-pin; Small Spot
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: PMMA
  • Power Supply: 18-30 VDC
  • Delay at Power-Up: 150 ms
  • Ingress Protection: IP67/69K
  • Repeatability (µs): 180
  • Sensing Beam: Visible White LED
  • Sensing Beam Wavelength: Broad Spectrum White
  • Max Sensing Distance: 60 mm
  • Max Relative Humidity: 95% @ 55 °C
  • Housing Material_: Zinc Die-Cast, Matte Chrome Plating
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 8
  • Output Response Time: 33 to 0.33
  • Operation: Normally Open/Normally Closed
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Application: Registration Mark: No
  • Feature: Remote Teach: No
  • Feature: Analog Output(s): No
  • Beam Spot Size: 6 x 6 mm at 25 mm
  • LED Orientation: Perpendicular to sensor length
  • Feature: Multifunction Input/Output: Yes
  • Feature: Sensing Specialty: Small Spot Size
  • Connection Type: Integral QD
  • Feature: Application Color: Yes
  • Feature: Luminescence: No
  • Indicator Type: LCD/LED
  • Max Sensing Range: 60 mm
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: PMMA
  • Power Supply: 18-30 VDC
  • Delay at Power-Up: 150 ms
  • Ingress Protection: IP67/69K
  • Repeatability (µs): 180
  • Sensing Beam: Visible White LED
  • Sensing Beam Wavelength: Broad Spectrum White
  • Max Sensing Distance: 60 mm
  • Max Relative Humidity: 95% @ 55 °C
  • Housing Material_: Zinc Die-Cast, Matte Chrome Plating
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 8
  • Output Response Time: 33 to 0.33
  • Operation: Normally Open/Normally Closed
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Application: Registration Mark: No
  • Feature: Remote Teach: No
  • Feature: Analog Output(s): No
  • Beam Spot Size: 6 x 6 mm at 25 mm
  • LED Orientation: Perpendicular to sensor length
  • Feature: Multifunction Input/Output: Yes
  • Feature: Sensing Specialty: Small Spot Size
  • Connection Type: Integral QD
  • Feature: Application Color: Yes
  • Feature: Luminescence: No
  • Indicator Type: LCD/LED
  • Max Sensing Range: 60 mm

$ 1,473.00 1473.0 USD $ 1,473.00

$ 1,473.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
